Features:

- synchronous control of two cameras with LANC/ACC connection
- camera manufacturers with LANC connection: SONY and CANON (only camcorders)
- cable length approx. 80 cm (extendable to 100m)
- splash-water proof keyboard/housings

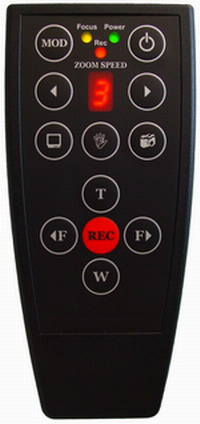

Implemented functions of this LANC control:

In video mode:

• camcorder on/off
• start/stop recording
• zoom shot tele/wide
• 8 zoom speeds (with gentle starting and deceleration)
• mode change Cam/Photo (only Sony)
• photo recording on memory stick (only Sony in photo mode)
• timelaps recording on tape/memory stick (only Sony in photo mode)
• autofocus on/off
• push autofocus
• manual focus close/far
• on screen display on/off
• status indications

In photo mode (photo-cameras with ACC-jack):

• photo-camera on/off
• activate auto settings for photo
• store settings for photo and fire when button is released
• zoom tele/wide
• timelaps shooting

NEW ! "ste-fra LANC V2":
Version 2 of this remote control provides a (mis)sync display (right after power-up process) using the build-in LED segment. In addition it is displayed which of the two cameras acts first.
Missynch is displayed in 0.1 ms steps from 0ms to 1 ms and in 1 ms steps from 1ms to 4 ms. Missync larger than 4 ms is marked as error, however the remote still works up to 10 ms (PAL) missync. At a missync larger than 10ms the remote can't control the cameras any more (due to LANC protocol specifications)

Software Version 2.5:
New functions in version 2.5 (since January 2006 included in all Version 2.x):
- Timelaps recording for Photocameras
- changes shooting process at timelaps recordings - firing after 2.6 seconds to be able to process automatic settings (focus, white balance e.t.c)

Software Version 2.6:
New functions in version 2.6 (available since April 2007):
- support for all functions (including switching from CAM to Photo mode) for all new SONY camcorders like HDR-HC5, HC7, UX1, SR1

Note: if you use one of the new Sony camcorders (HC5, HC7, SR1,UX1) with a remote with software 2.5 or earlier switching from CAM to Photo mode does not work since Sony changed LANC communication for this function. Therefore an upgrade to version 2.6 is recommended. All other functions in version 2.5 or earlier are not affected. You are still able to use the version 2.5 with the new Sony camcorders if you do not need the photo mode.

It is recommended to use "ste-fra LANC V2" to select a well working combination of two cameras before purchasing them.

NEW! ste-fra LANC Version 3.x:

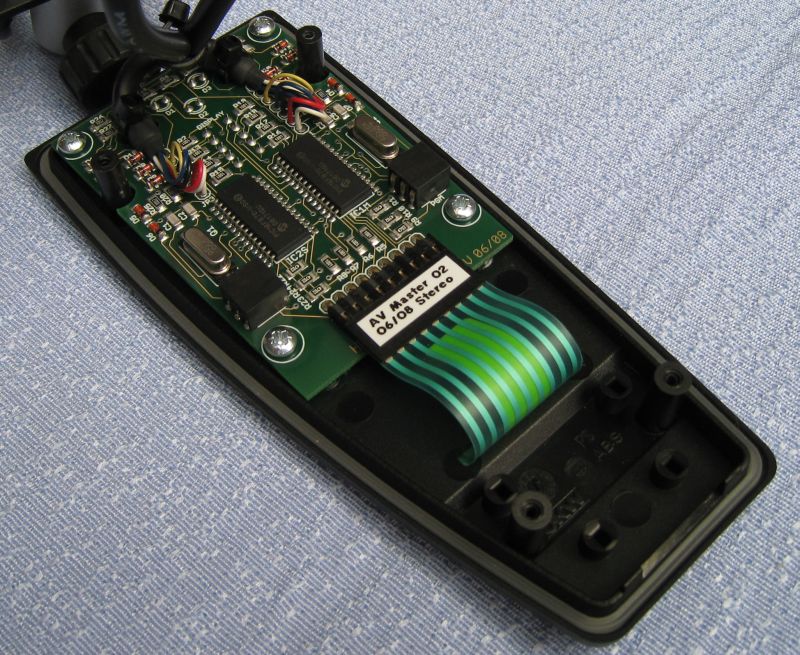

- new PCB layout using a single PCB instead of two
- available with 3 different cables:

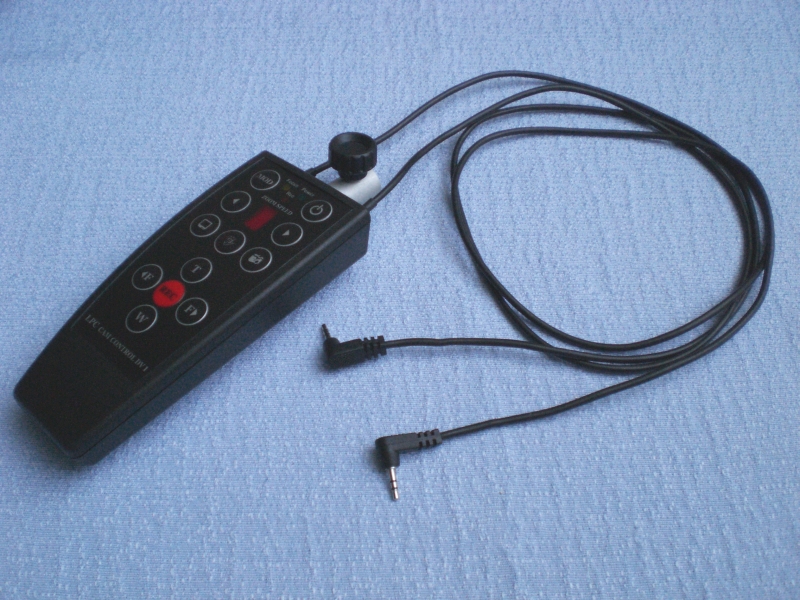

-- LANC STD with standard 2,5mm plug, straight cables

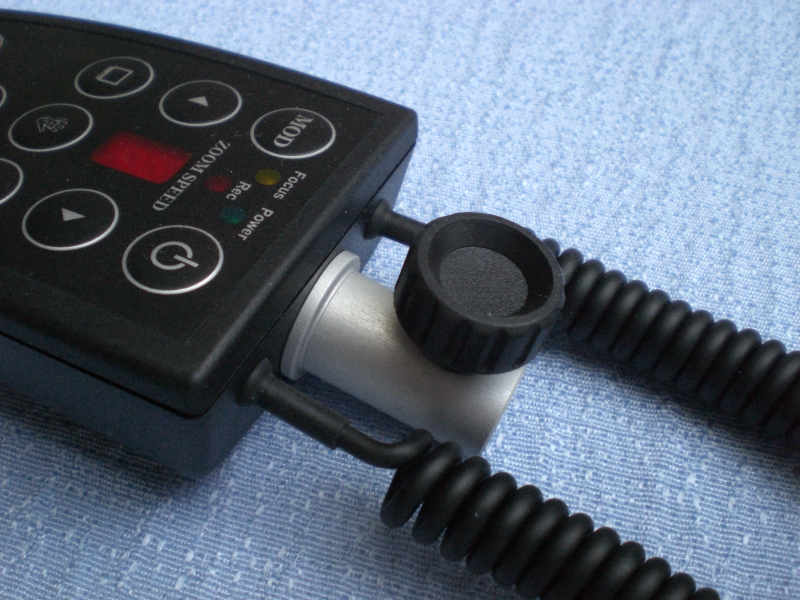

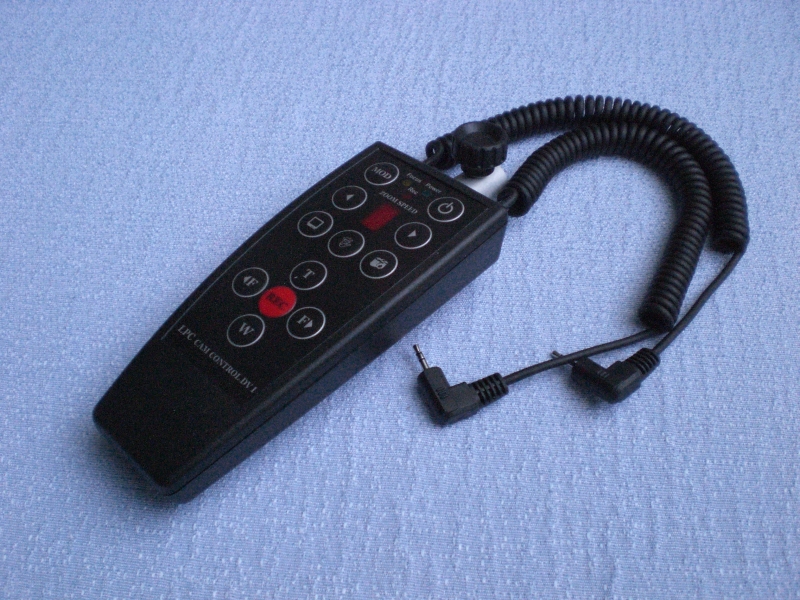

-- LANC HX with standard 2,5mm LANC plug, helix cables

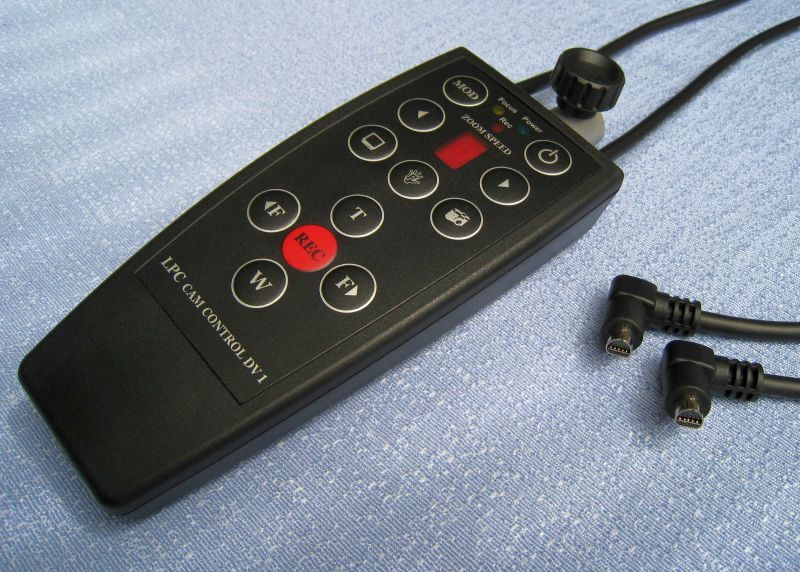

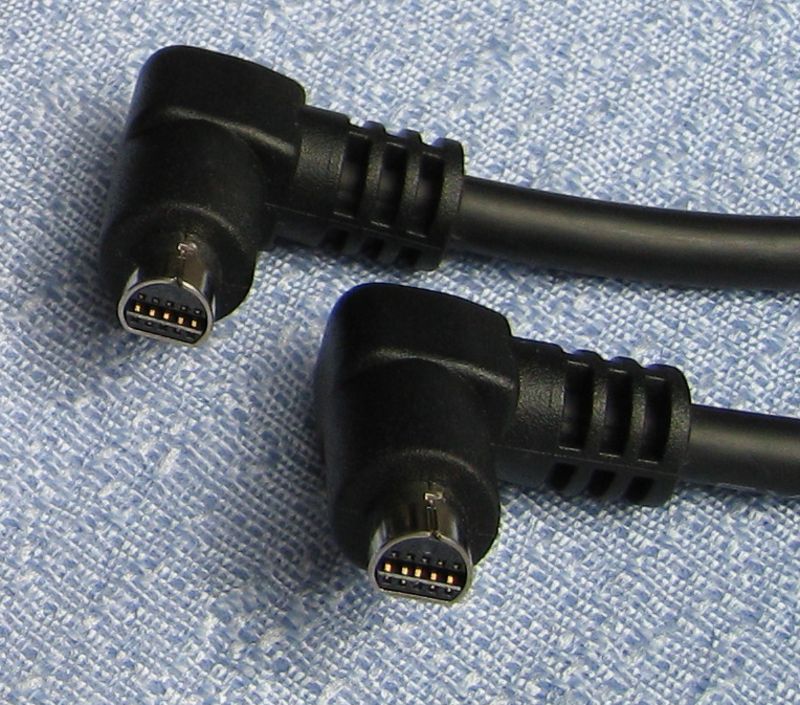

-- LANC AV/R with the new 10-pin SONY AV/R plug

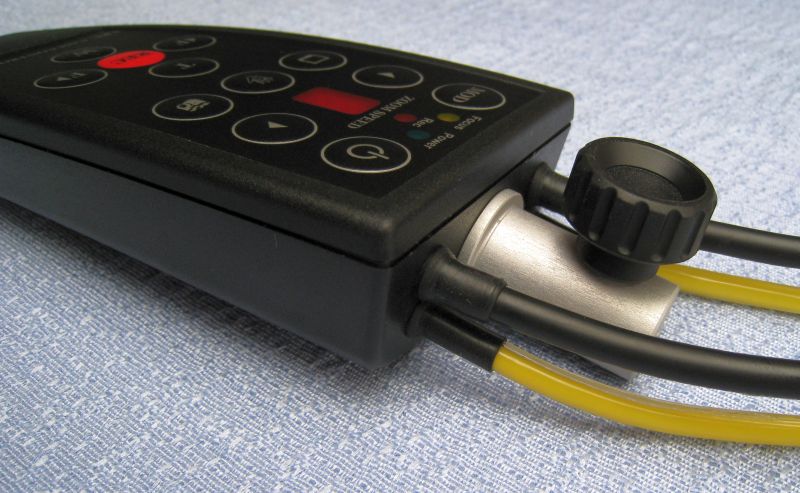

-- LANC AV/R+V with the new 10-pin SONY AV/R plug + 2* video out
- Cable length: LANC STD and LANC HX: 90 cm, LANC AV/R 100cm
- right angeled plugs

Using the new AV/R plugs, this new remote is compatible with ALL new SONY camcorders using the new 10-pin AV/R jack for the remote signals (LANC). Camcorders using this connector are all newer camcorders starting from HDR-HC3 including HDR-CX6/CX7 as well as all new camcorders starting from 2008
Note: the AV/R cables are NOT expandable
An upgrade of the remote from version 2.x to 3.x ist not possible since V3 uses a new different PCB layout.
Software V2.6 is identical toV3.0

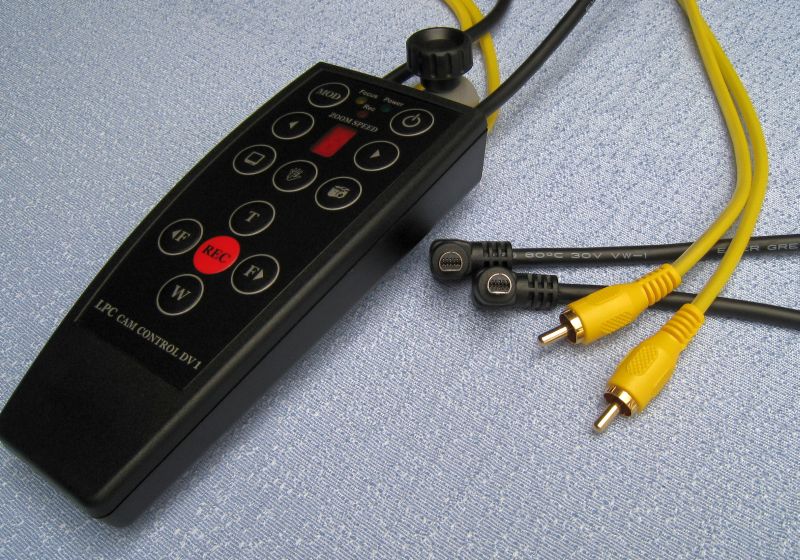

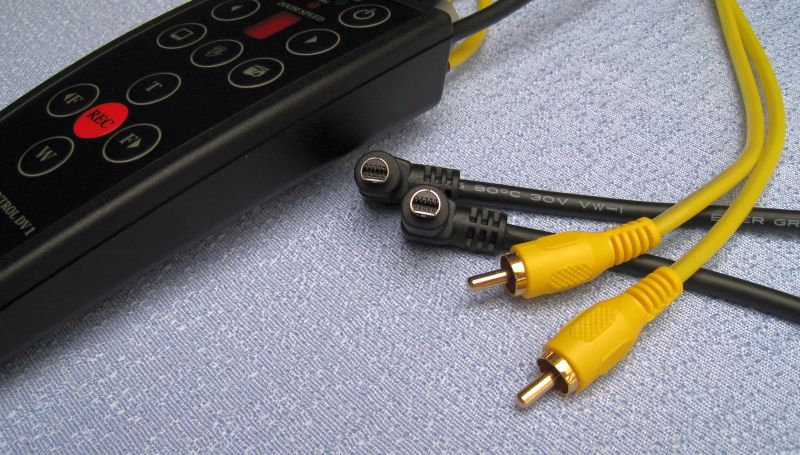

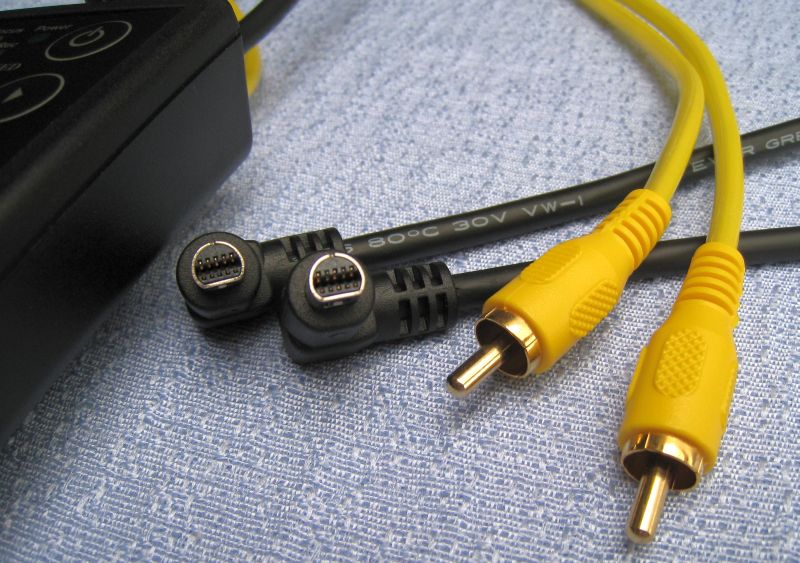

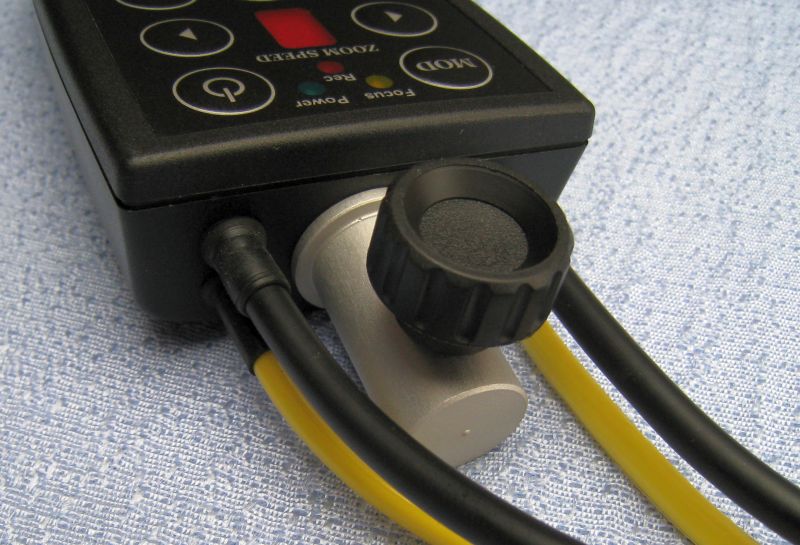

NEW! AVR Version with video out (left and right)

Videocables (lenght app. 60cm (24")) with standard video plugs allow connecting a 3D preview monitor based on vidoe (composite) inputs. Cables are very flexible.

Note: please make sure that the cameras have a LANC or ACC jack - unfortunately not all models have this jack! This remote is not able to synchronize the two cameras! The cameras are powered on simultanously, and both cameras run independently, which may lead to small asynchronity or syncdrift (even less than 1/10000s). Nevertheless one can record photos using a flash or videos with fast movement. Missync after power-up or syncdrift while operating are rooted in the used cameras themselves and cannot be influenced by this remote. Any combination of two identical cameras might end with different results in missync and syncdrift

AV/R -> LANC adapter

Adapter converting from AV/R to LANC + video out

This adapter converts from AV/R jack used on all new SONY camcorders to standard LANC (2.5mm) plus video out (3.5mm). This adaoter works with ALL LANC remotes using a standard LANC plug e.g ste-fra LANC V2.x and TwinBox

- no batteries
- plug and play device
- no restrictions according LANC protocol
- adapter does NOT influence/change LANC protocol
- video out usable for connecting a preview monitor (composite signal)

For stereoscopic recordings one pair (two adapters) are required - therefore this item is only available as a pair of adapters.

Available from June 10th 2008 - preorders now accepted!

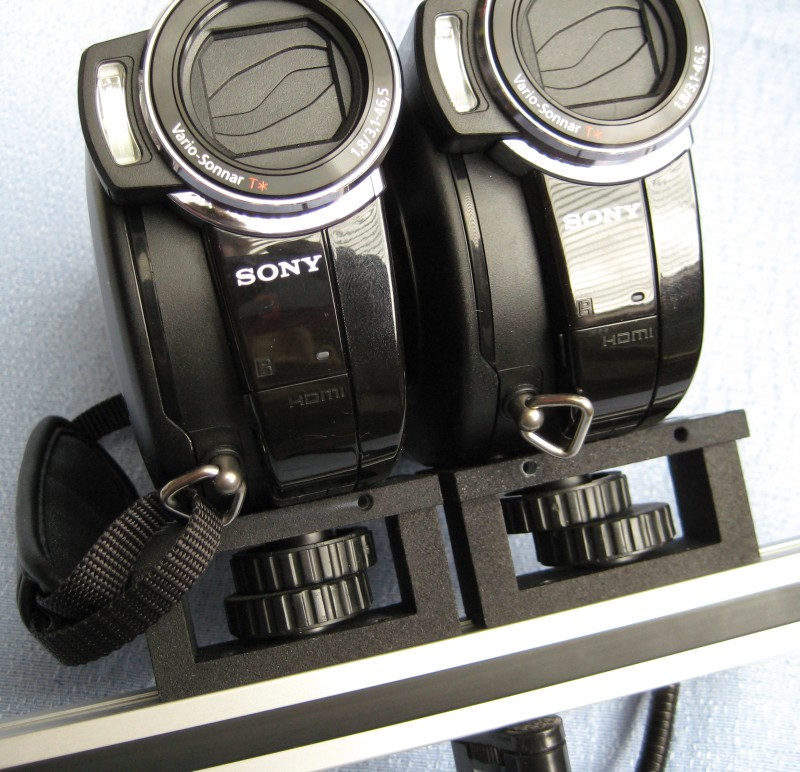

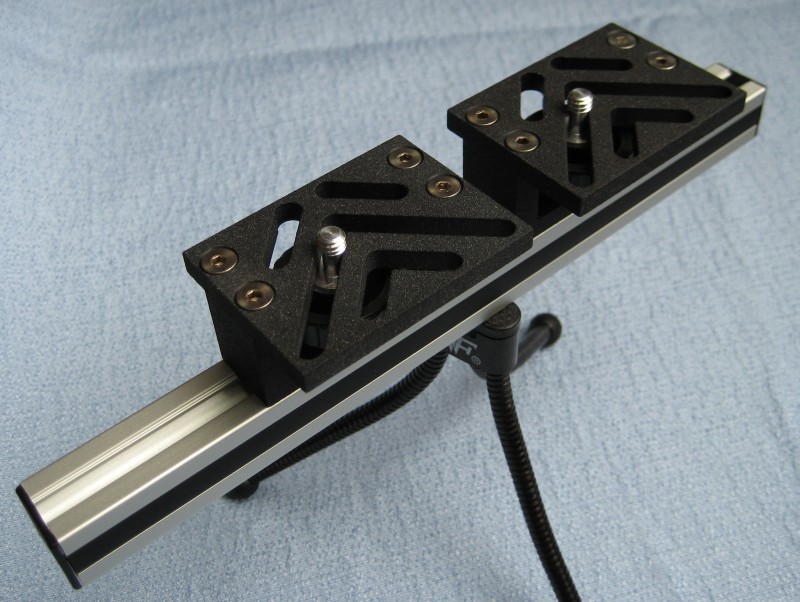

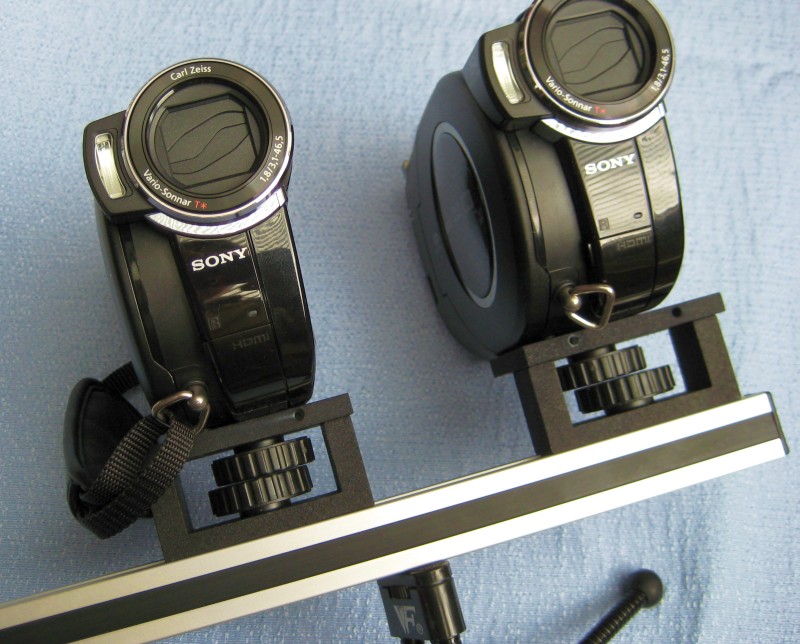

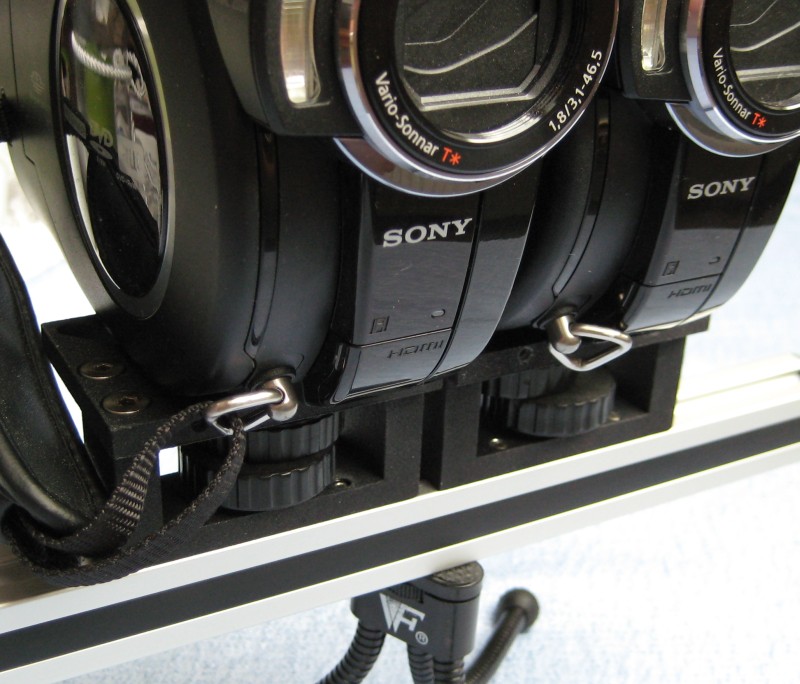

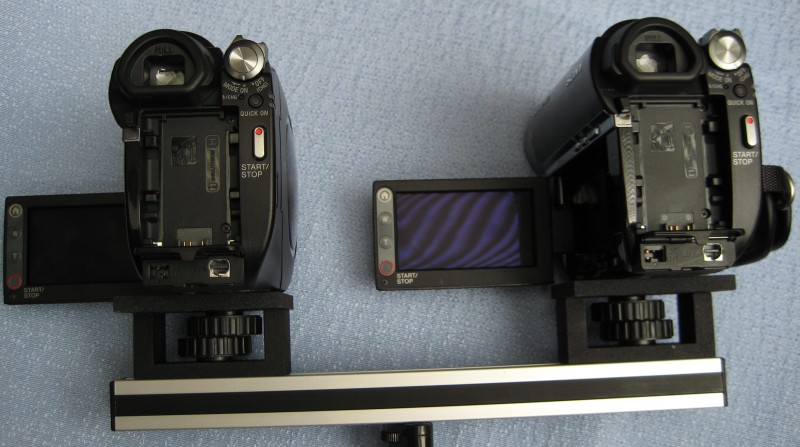

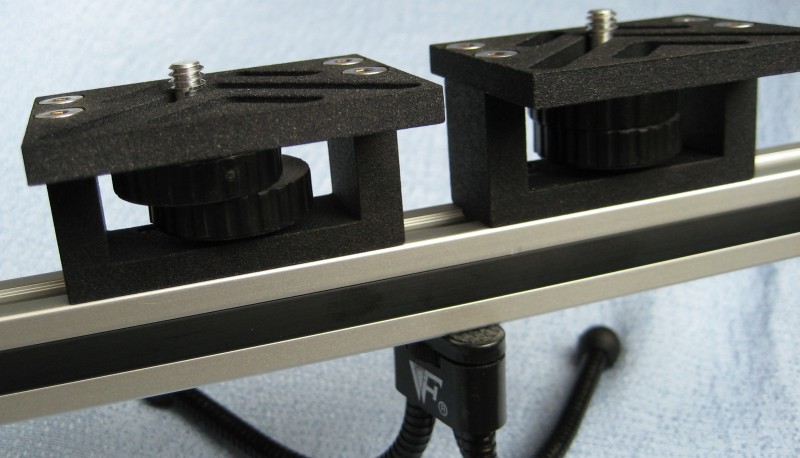

ste-fra CAM with 2 SONY PC-8 camcorders mounted on a small rig with fixed stereobase

• mount any 2 cameras (photo/video - analog/digital) using standard 1/4" tripod mount
• mount cameras side-by-side or upside-down - depending on used camera models (upside-down mounting is only possible if the distance between objectiv's midpoint and top camera point is less than the distance between objectiv's midpoint and buttom of the camera plus 30 mm)
• variable stereo base
• stable aluminium profile (20 mm or 30 mm) mounted to a frame
• max width of the construction: 3m with 20mm profile, 6 m with 30 mm profile
• posibility to mount the rig on a tripod or even on two or more tripods (when using very large rigs.

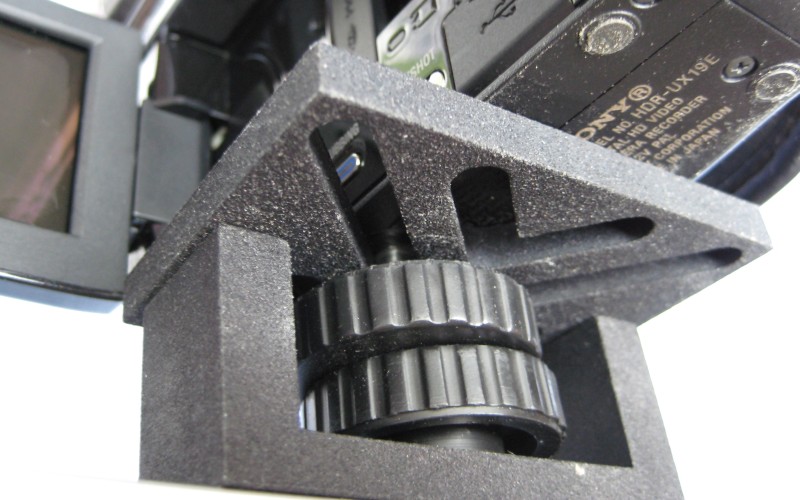

• cameras are mounted on a mounting plate consisting of a u-shaped plate which fits to the used profiles and a groundplate holding the cameras
• easy camera readjustment using an edge (if dismountig is necessary e.g. to change battery or memory stick/video tape)
• camera mounting plate is manufactured either of aluminum (radiated) or made of plexiglass (matt radiated)
• all open profile slots are covered with black plastic profiles
• mounting the cameras upside-down it might be necessary to tilt the cameras to each other if the objectives of the cameras exhibit a distortion concerning the horizontal objective axe - for this 2 small srews tilt each mounting plate up to 5 degrees
• available sizes of the groundplate:
  version 1: 120 mm / 46 mm no longer available
  version 2a: 122 mm / 62 mm
  version 2b: 122 mm / 46 mm
  version 2c: 62 mm / 62 mm
  version 2d: 62 mm / 46 mm

Differences of version 1 and 2x:

• V1 is available only in one size
• V1 has only one edge which can be only mounted crosswise
• with V1 you can NOT mount 2 mini DV camcorders (e.g. SONY PC-8) side-by-side using only one single mounting plate.


Since the rig can be adapted individually on customer's request concerning the size of the used cameras, the prices specified are only example prices for the size of the rack indicated in each case.
The size is indicated at width/height/depth of the profile lengths used in each case - the total width and depth are 40 mm larger (using 20 mm profiles) - or 60 mm larger (using 30 mm profiles)

A use of 30 mm profiles is only recommend if you plan very large rigs (starting from 1m) - these are substantially more stably, however also heavier at such sizes!

Further sizes and the appropriate prices on request

ste-fra CAM 20 mm profile - dimensions: 300/200/150 with 2 * groundplate V1
example: mounting 2* SONY F717 upside-down streobase adjustable from 75mm to 120mm

this is only an example - groundplate V1 is no longer available you need to choose groundplate V2!

(price does NOT include cameras and remote control)

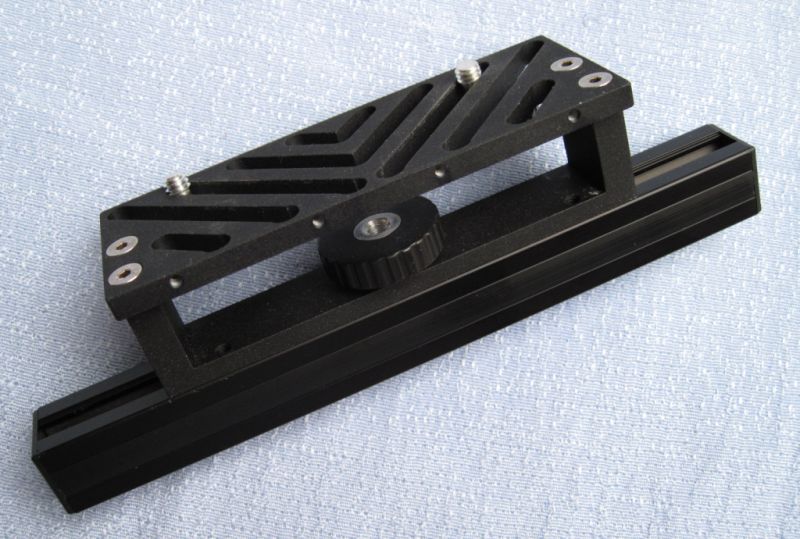

H2x20 / H2x30

Single mounting plate including groundplate version 2a OR 2b for side-by-side mounting of two camcorders without posibility of stereobase adjustment. Camcorder width up to about 7,5cm
Includes are: 3 x 1/4" screws, all needed screws to mount the plate, 2 variable edges, 2 nuts 1/4" for 20mm profiles (1 for mounting on standard tripods, one for mounting the plate), 1 profile 15cm including 2 cover profiles and 2 caps
Version for 20mm profile

Single mounting plate including groundplate version 2a OR 2b for side-by-side mounting of two camcorders without posibility of stereobase adjustment. Camcorder width up to about 7,5cm
Includes are: 3 x 1/4" screws, all needed screws to mount the plate, 2 variable edges, 2 nuts 1/4" for 30mm profiles (1 for mounting on standard tripods, one for mounting the plate), 1 profile 15cm including 2 cover profiles and 2 caps
Version for 30mm profile

ceiling mounting with 1 projector

ceiling mounting with 2 projectors

tabletop version with 2 projectors

Characteristics:

• made from stable 20 mm aluminum profiles
• projectors reside on two 6 mm thick plexiglass plates
• projector levels are freely adaptable (depending upon height of the projectors)
• all profile slots are covered with black PVC cover profiles
• mounting option for polarisation filters using a quick holding block
• as accessories avilable: in height variable feet
• dimensions (W/D/H): 390 mm/490 mm/354 mm
• rack is also available as a variant for ceiling mounting (characteristic: lower plexiglass plate can be removed in installed condition)

Note: The version as ceiling mounting does not contain mounting material, since the assembly can be different depending upon condition of the ceiling. We recommend to attach it using 4 angles. If the projector rack should be adjustable use threaded rods. This assembly presupposes that a lowered ceiling is used.

Porjector levels can be specified only before assembly, and are later no longer (easily) adjustable (except the rack is disassembled and assembled again)

ste-fra RACK Boden

click on picture for larger view

click on picture for larger view

click on picture for larger view

UWG-01

click on picture for larger view

click on picture for larger view

click on picture for larger view

click on picture for larger view

click on picture for larger view

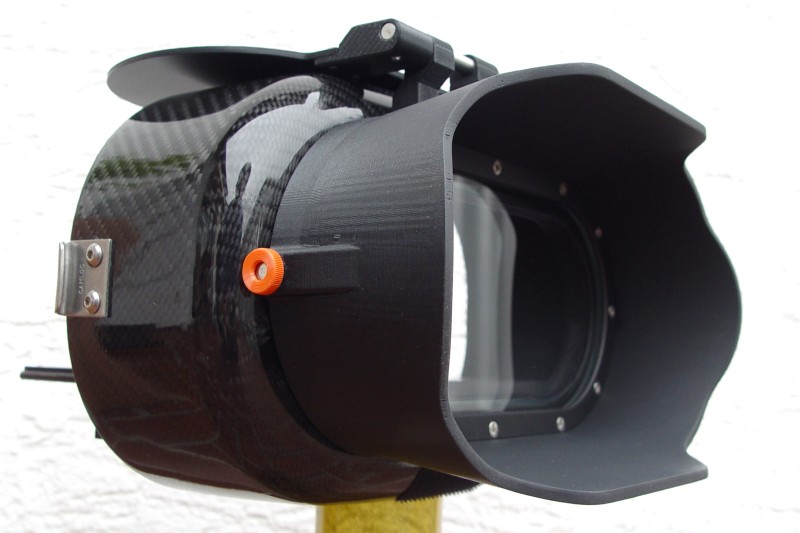

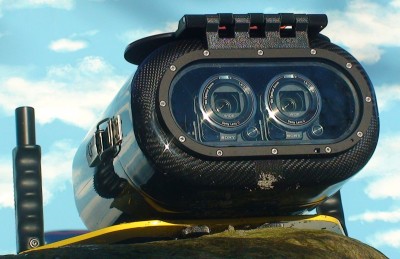

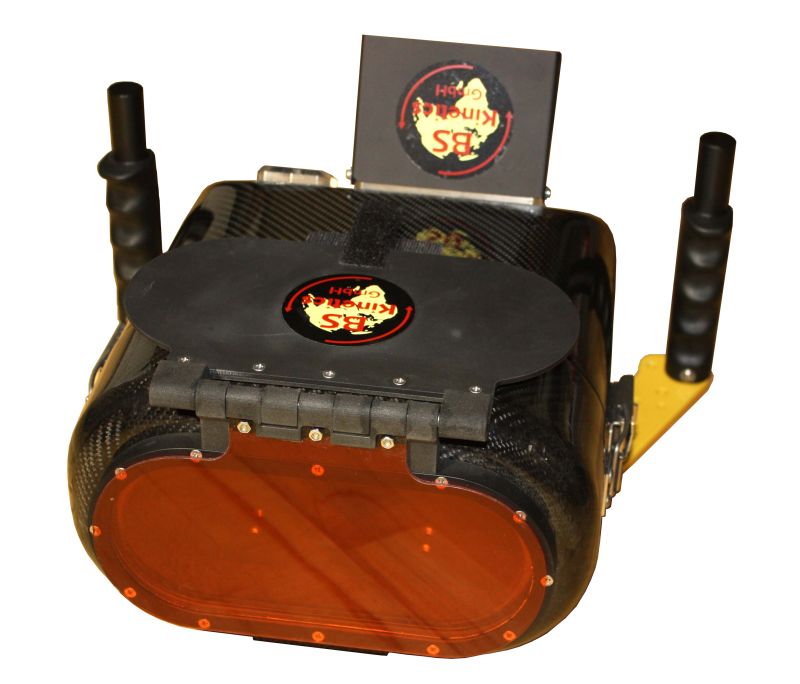

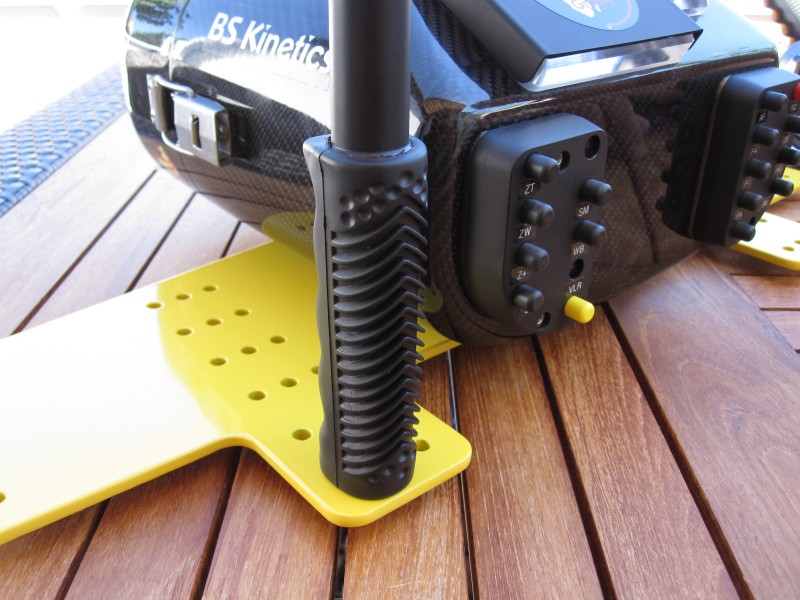

TwinBox

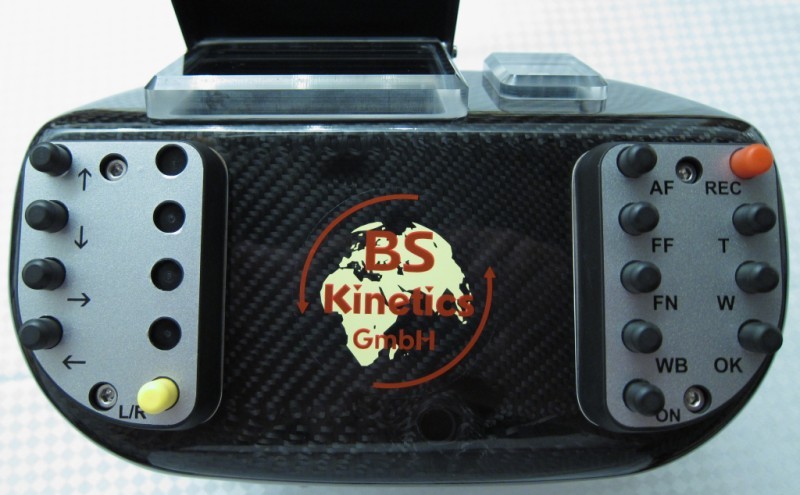

Stereoscopic underwater housing for side-by-side mounting

Features for the underwater housing:

• controlled via stereoscopic LANC remote (included)
• waterproof up to 70m
• mounting two SONY camcorders side-by-side
• all needed functions can be controlled via easily reachable buttons
• possibility to mount wide angle lenses
• for details of the versions available check pricelist below

manufacturing time for UWG-01: 5-6 weeks

TwinBox will be manufactured to fit for ONE pair of camcorders as follows:

- SONY HDR-HC1/A1
- SONY HDR-HC3
- SONY HDR-SR1 / UX1
- SONY HDR-HC5 / HC7

manufacturing time for UWG-02: 6-8 weeks

For more detailed informations please contact via e-mail

Both underwarer housings will be manufactured only on cusomers order. When placing an order a prepaiment of 60% of the final invoice needs to be done, the rest before delivery. Canceling such an order (before delivery) will result in paiment of 25% ! Since these housings are manufactured on customer request no return or money back guarantee is possible!

Underwater housing for 2
- SONY HDR-HC1/A1
- SONY HDR-HC3
- SONY HDR-SR1 / UX1
- SONY HDR-HC5 / HC7

with standard battery and wideangle lenses (up to 71mm diameter) - includes stereoscopic LANC remote

Note: this housing will fit only for ONE camcorder model!
Note: no batteries and no wide angle adapters included

StereoDataMaker (SDM) is a project where you may built a stereoscopic photo rig using specific Canon photocameras without need to disassemble the cameras

NEW!

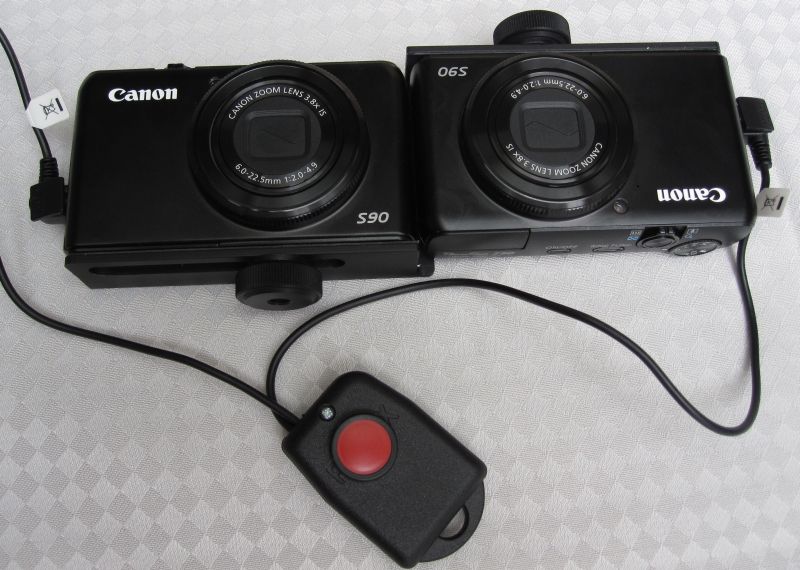

mini SDM remote

SDM mini special A

With this remote one is able to shoot stereo photos using the additional StereoDataMaker Software for Canon photocameras.

Supported cameras: Canon IXUS70/SD1000, IXUS800/SD700, IXUS950/SD800, A460, A550, A570, A610, A620, A630, A640, A700, A710, A720, G7. For other supported cameras please check the SDM homepage.

The remote consists of a power supply (3 AA batteries 1.5V or 3 AA rechargeable batteries 1.2V - batteries not included) and a push button as well as two USB cables (90cm)

The right angle adapter (90°) allows you to minimize the stereobase (adds only 10mm) when cameras are mounted side-by-side or upside-down. This adapter is NOT sold separate!

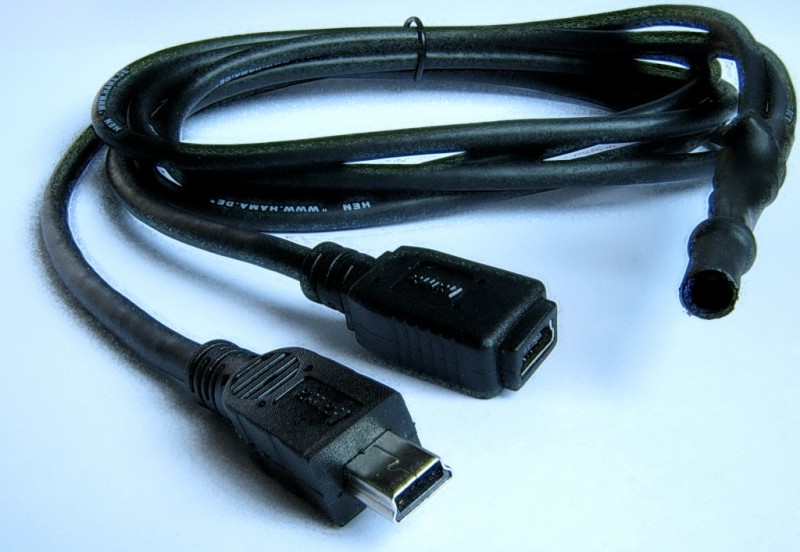

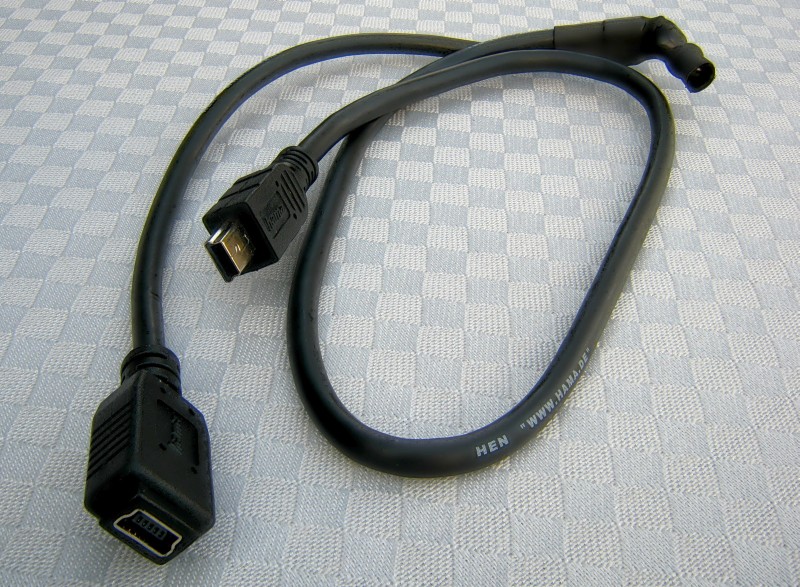

On request this remote is also available with more than one USB cable to be able to shoot with several cameras in order to make lenticular prints (multiview stereos) price: EUR 5.- (plus VAT) per additional cable - maximum 12 cables possible

Attention! This device works only with some Canon cameras together with StereoDataMaker.

Depending on the used model synchronisation may be less than 1/2000s (A570) or less than 1/4000s (A720) or even less than 1/20000 with some models. Flash synchronisation is possible up to a shutter speed of 1/1000s. Please read documetation of SDM for further informations.

NOTE:: we cannot do any support for StereoDataMaker !

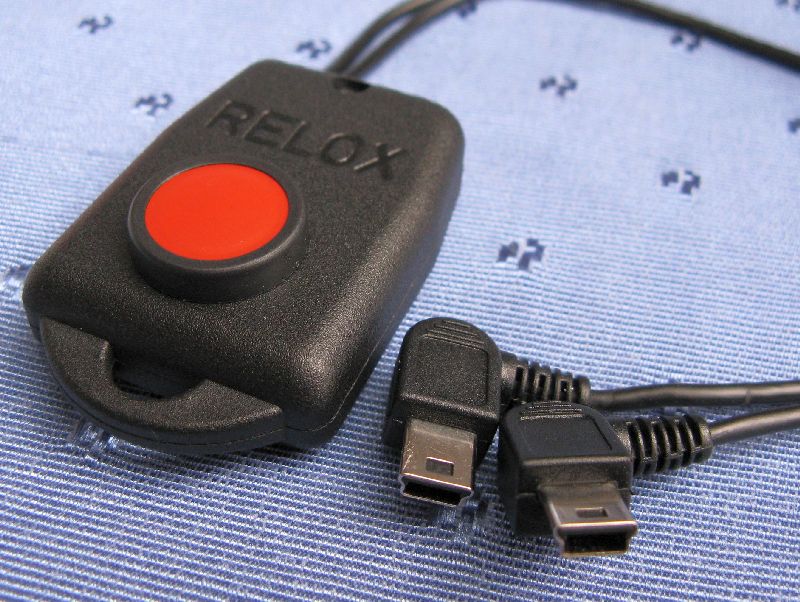

NEW! Mini SDM remote:

small housing (55x35x13mm) with integrated battery holder for 2* CR2016 (batteries included) with right angled mini USB plugs. Cable length: ~10" (250mm) (on request these cables are available up to 26" (65cm) (no additional costs) - please specify the cable length when ordering otherwise 10" (250mm) cables will be delivered)

All products which are no longer available are removed from the list below

The software needed to build a stereoscopic camera is available from SDM homepage. This firmware for the cameras is installed on the cameras SD cards. SDM is freeware therefore no support is available for SDM. For detailed SDM features please read the instructions on the SDM homepage. There are NO charges for SDM, only for copying service as far as the SDM firmware is included on the SD cards. There is no SDM manual available.

Canon-SDM-mini

* price does not include German VAT (19%) and shipping. This price is valid for all customers outside the European Union and for European customers (except Germany) with a valid VAT number.

** price does not include shipping - shipping costs may vary upon destination country, package size and shipping agency. For these items shipping is usually done as a maxi letter via standard postal service which is EUR 9.- worldwide / 5,50 EUR within Europe for SDM-AA or 5.- EUR worldwide / 4.- EUR within Europe for SDM mini (assuming no other items are ordered so total weight is below 100g). For customers within European Union without VAT number there are extra 19% VAT on the shipping costs.

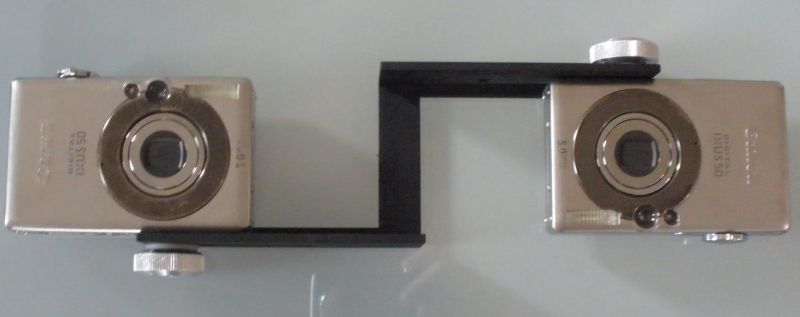

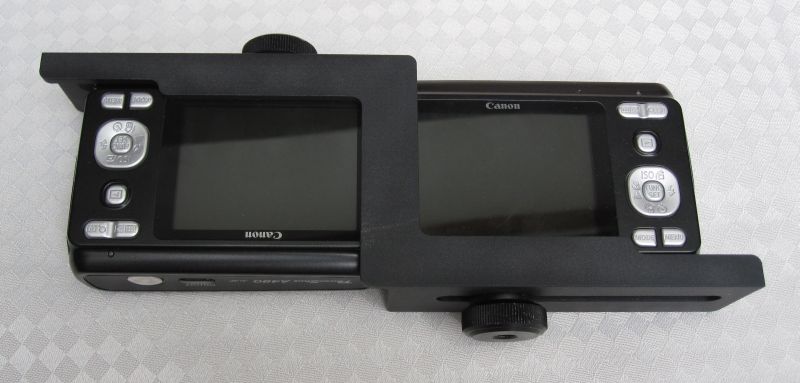

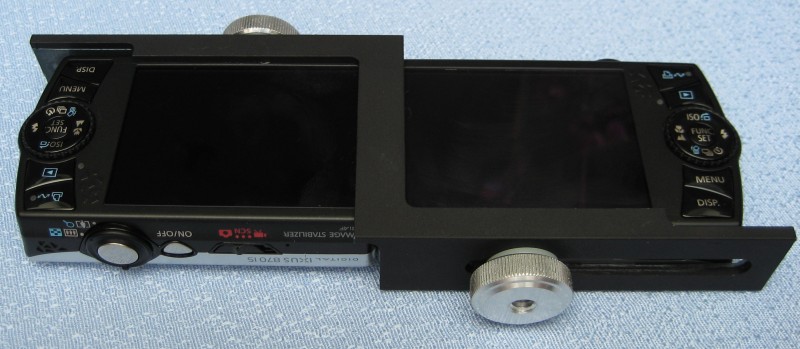

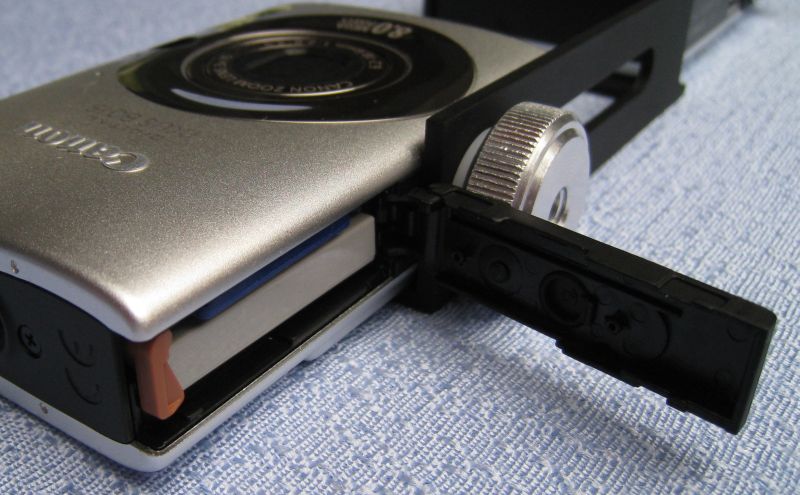

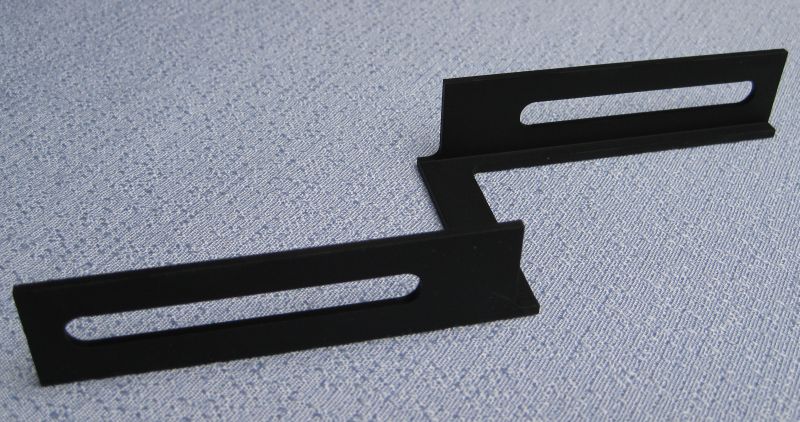

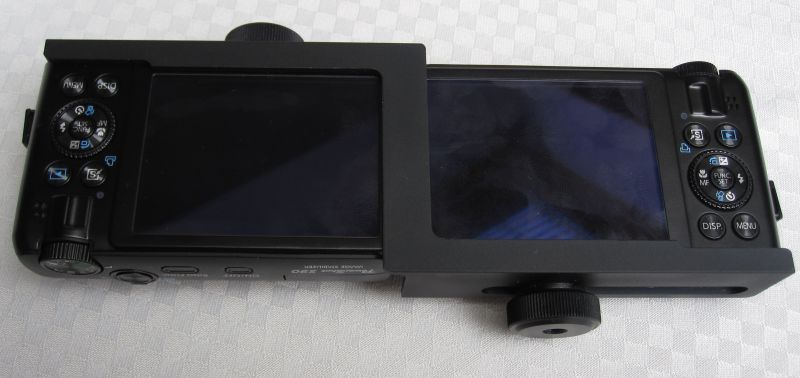

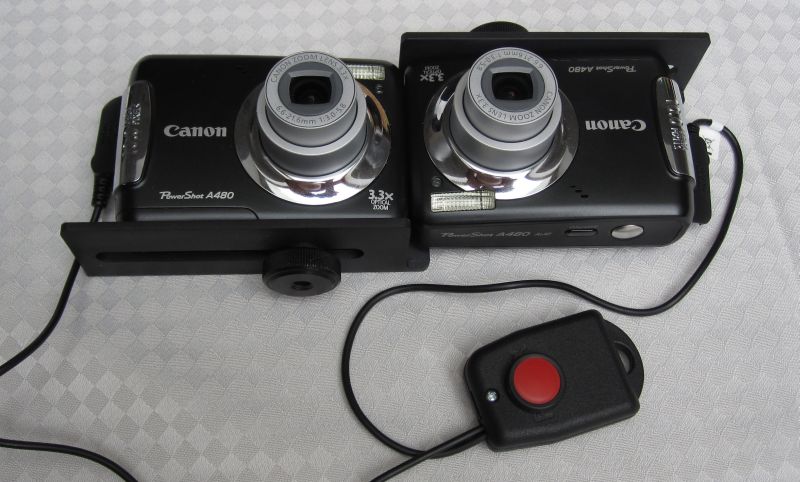

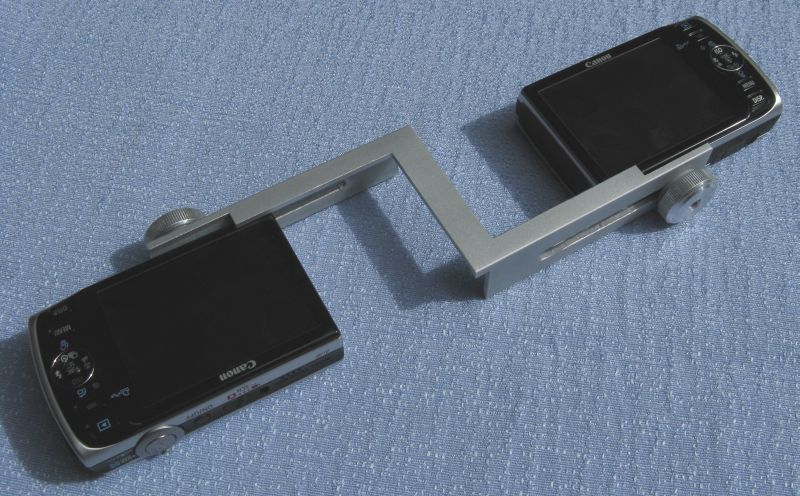

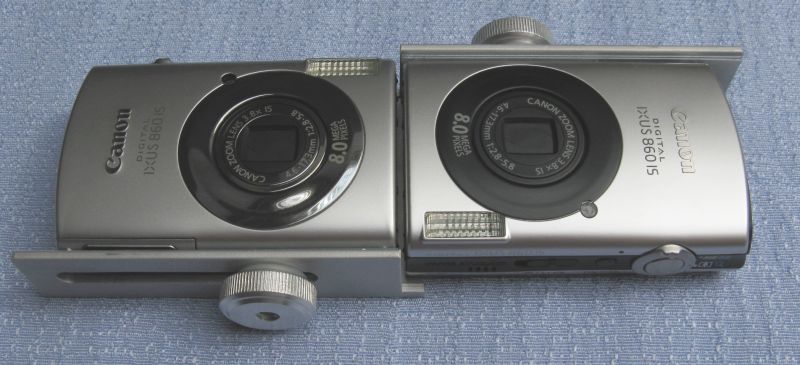

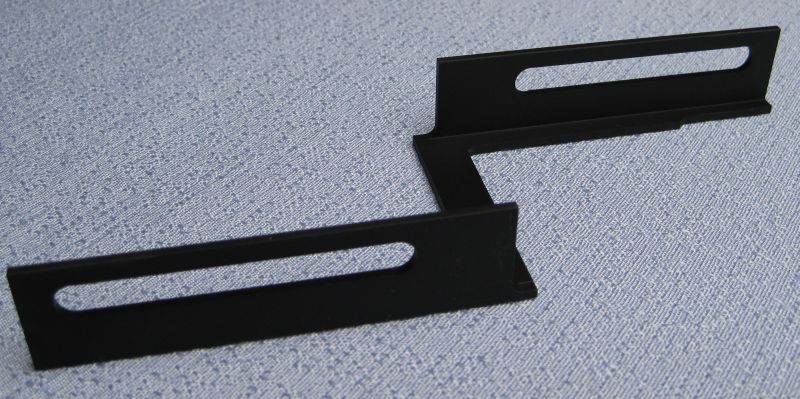

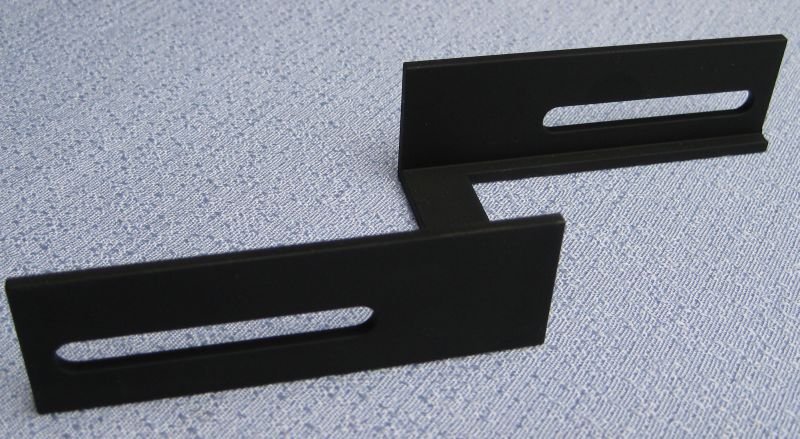

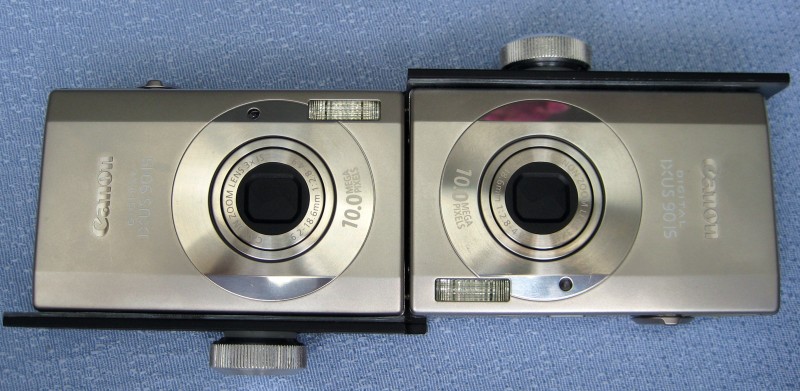

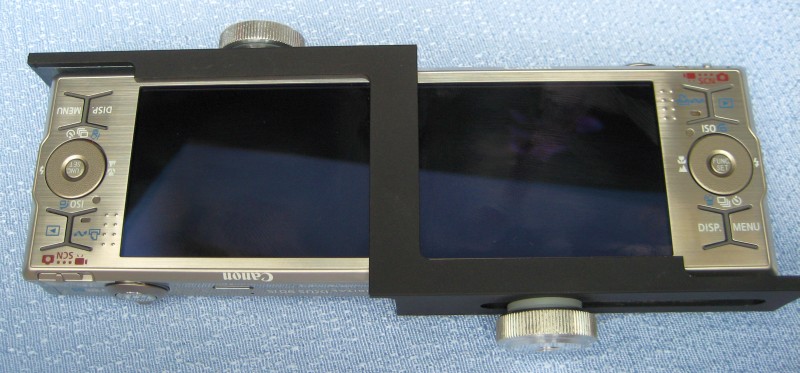

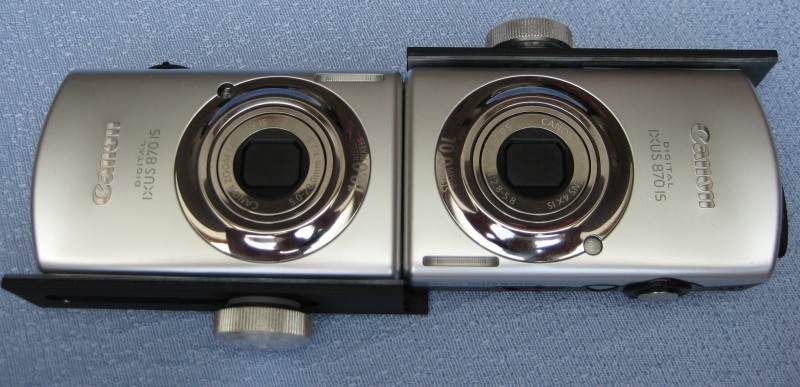

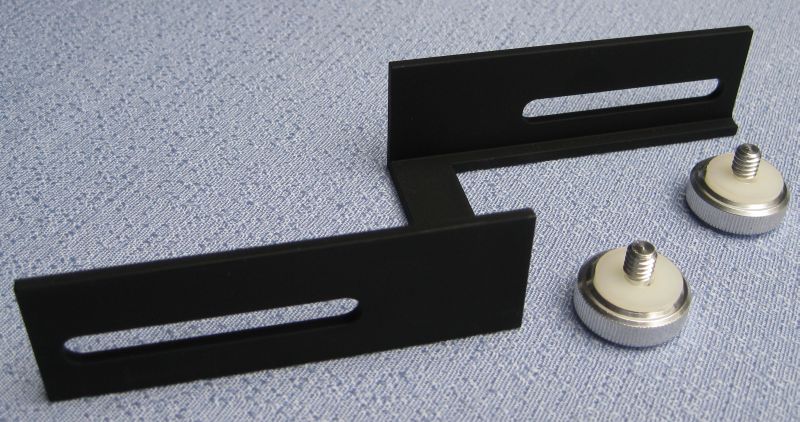

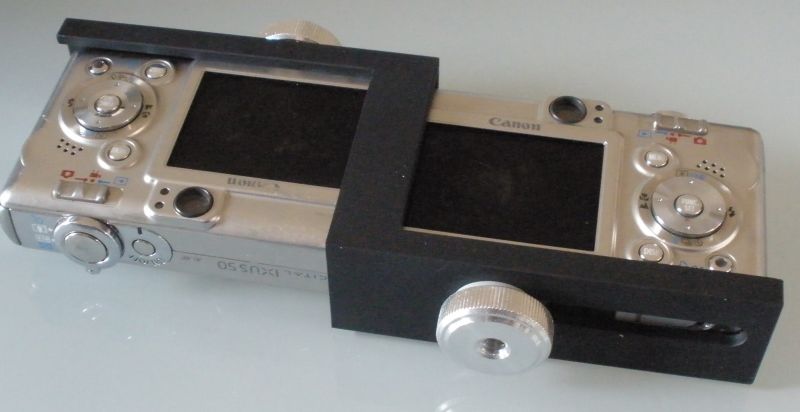

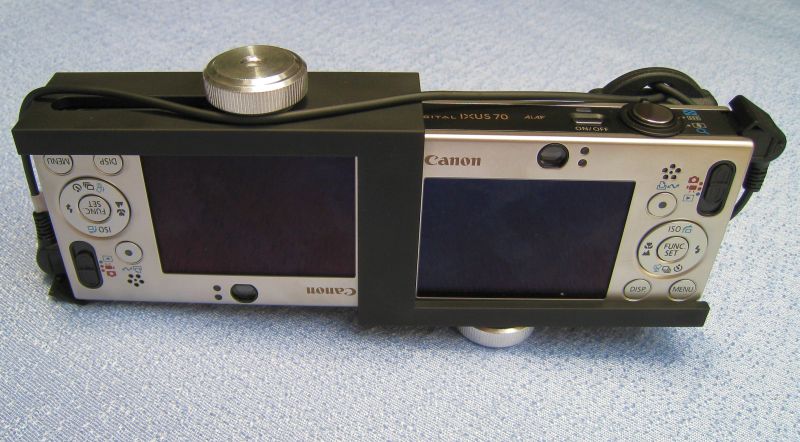

Aluminum Z-bar for mounting two Canon IXUS50, IXUS70 (SD1000), IXUS75, IXUS80 (SD1100), IXUS90, IXUS 860 (SD870) IXUS870, IXUS 950 (SD850), PowerShot G9,
SX110, SX200,IXUS 100,IXUS 980

(click on the pictures for a larger view)

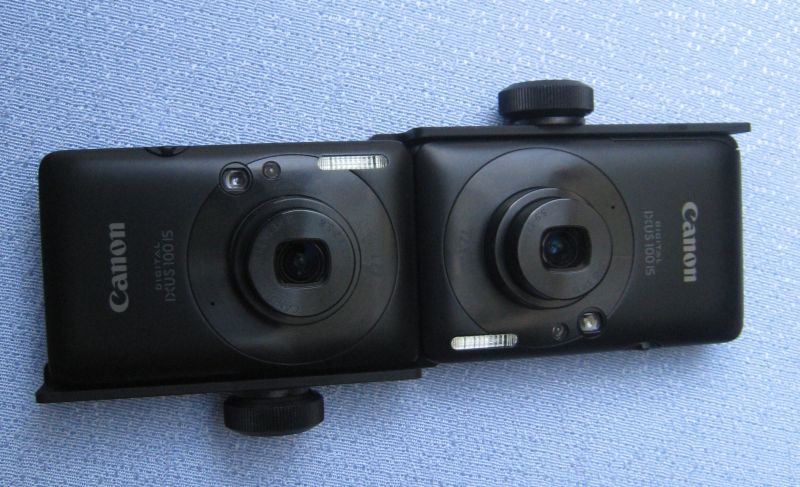

With this Z-bar you are able to mount two Canon SD1000 upside-down achieving a stereobase of 60mm. This Z-bar has a variable stereobase (60mm to 155mm) allowing access to battery and SD card slot if cameras are slided to the the end of the bar without need to dismount them.

material: aluminum - made of one single piece
surface: radiated

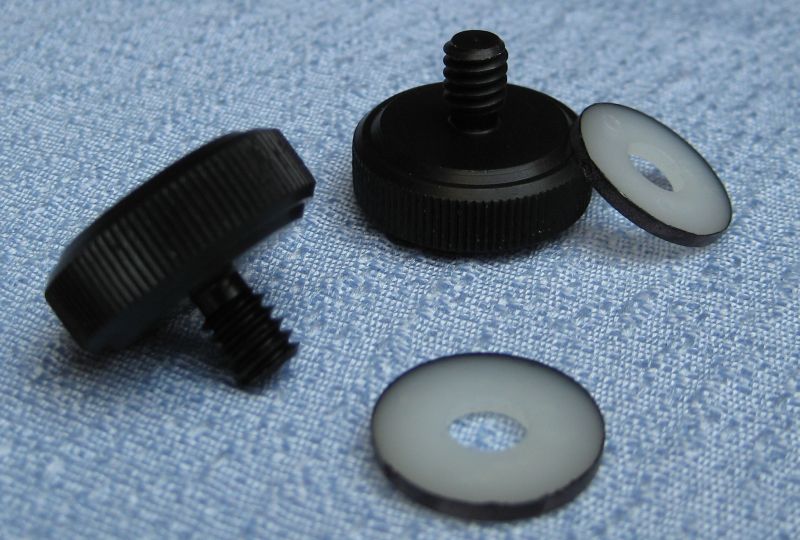

Optional parts: two large screws (25mm diameter) for an easy change of the stereobase. Screws have a 1/4" internal thread so mounting on a tripod as well as mounting additional parts is possible.

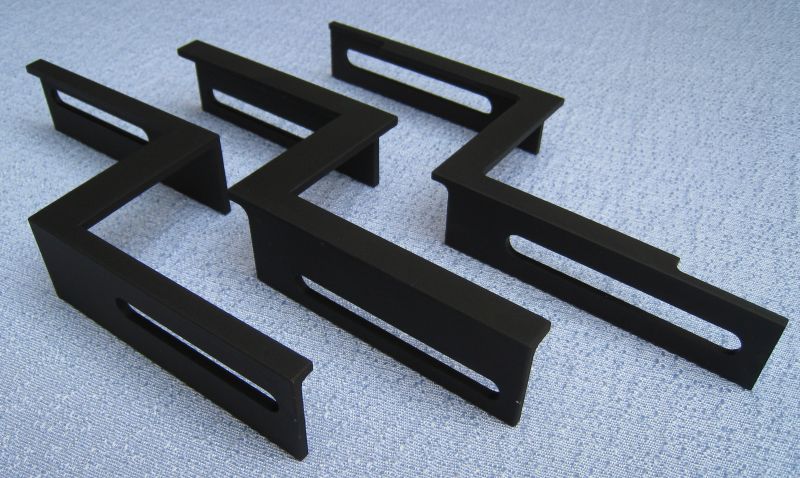

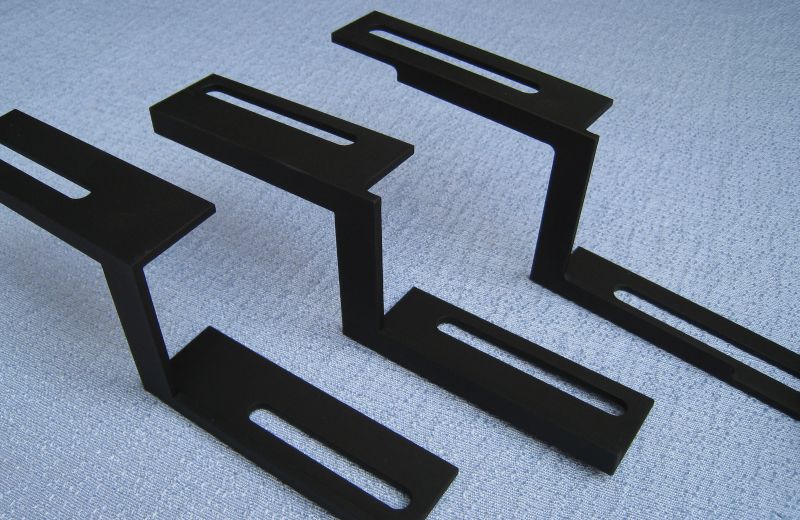

NEW ! From NOW on all z-bars are anaodized in black which gives a more durable surface, scratches on the cameras are minimized and it looks more professional. For this new version the price needed to be corrected a little bit to cover costs for anodizing

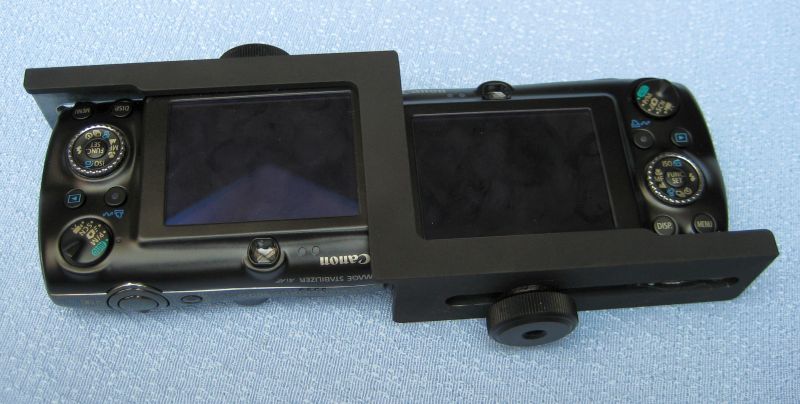

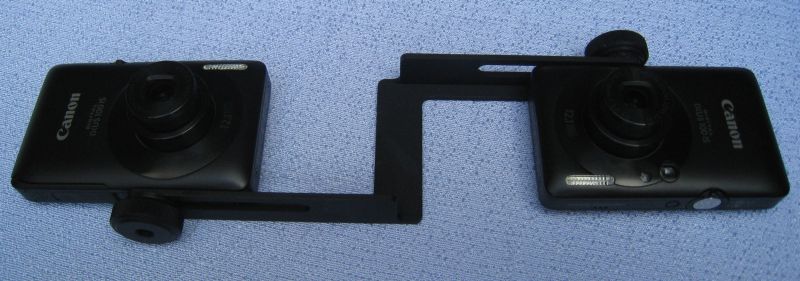

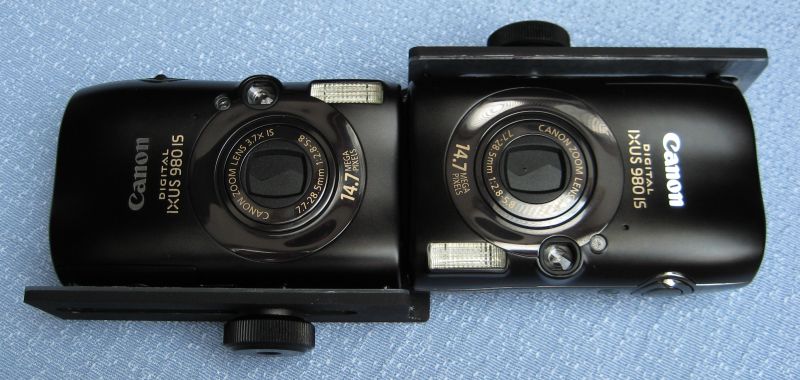

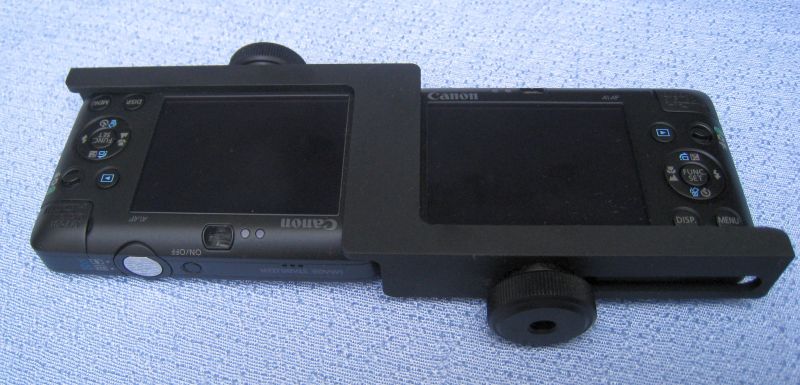

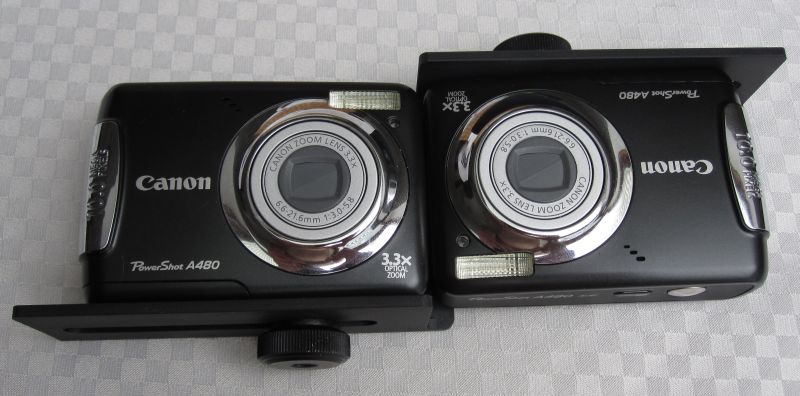

NEW Z-bars available for:

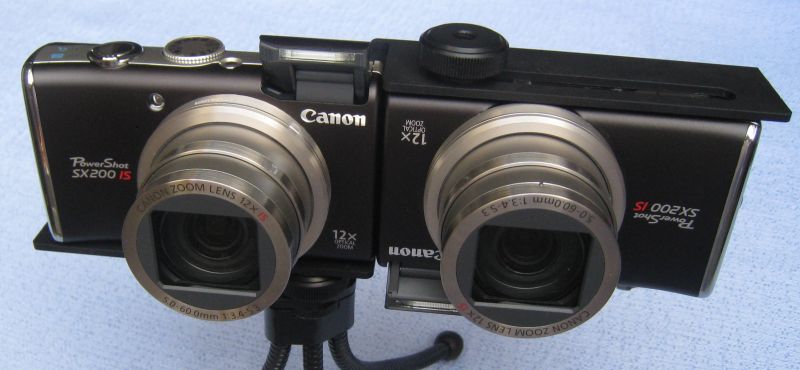

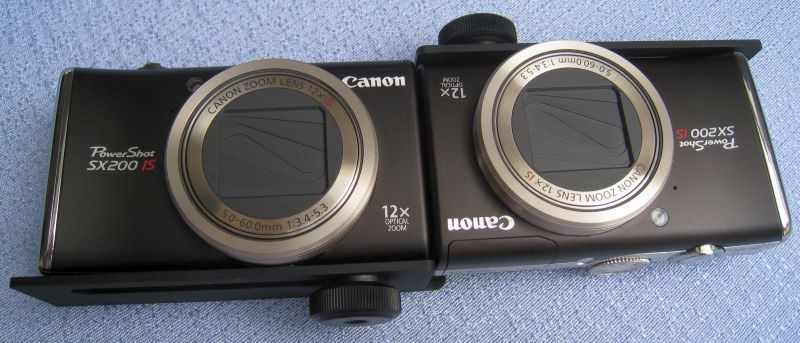

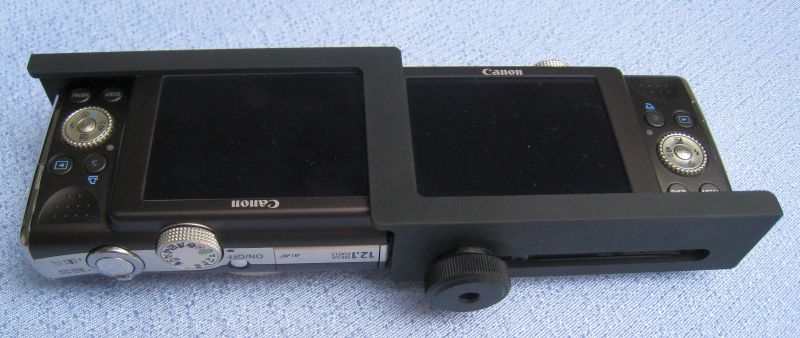

Powershot SX110, SX200
Ixus 980, Ixus 100

min stereobase: 60mm
max stereobase: 155mm

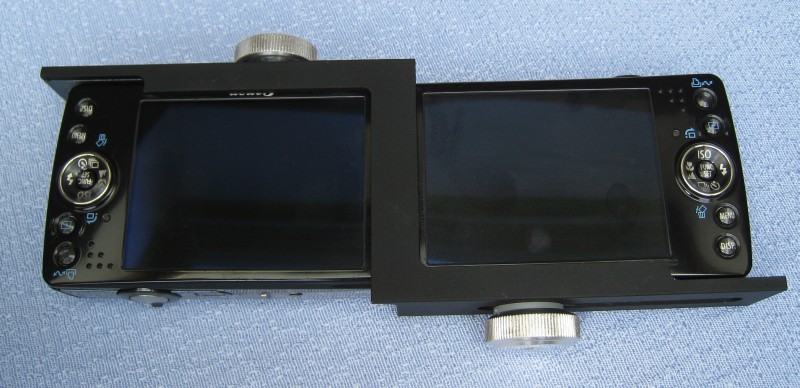

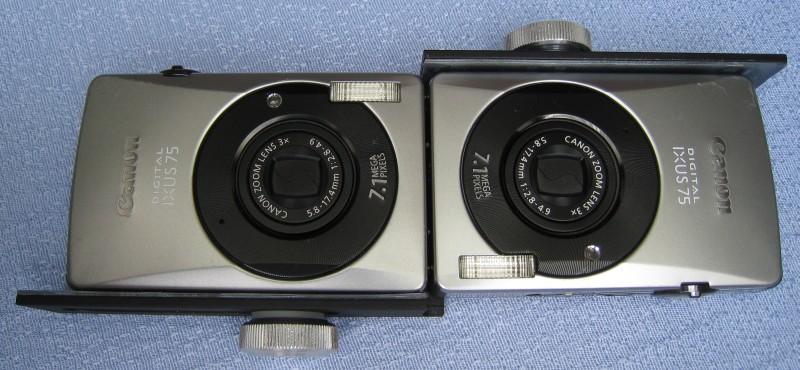

Z-bar for IXUS75/SD750
min stereobase: 66 mm
max stereobase: 172 mm

The software needed to build a stereoscopic camera is available from SDM homepage. This firmware for the cameras is installed on the cameras SD cards. SDM is freeware therefore no support is available for SDM. For detailed SDM features please read the instructions on the SDM homepage. There are NO charges for SDM, only for copying service as far as the SDM firmware is included on the SD cards. There is no SDM manual available.

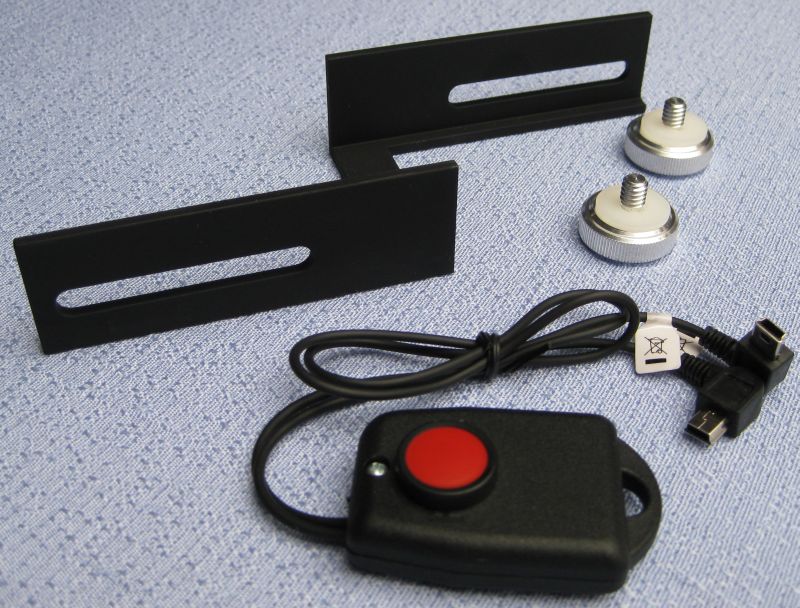

bundle 01 contains:
- Z-bar for Canon IXUS70
- 2 screws
- Canon SDM mini remote

bundle 02 contains:
- Z-bar for Canon IXUS70
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed
(V1.01 or V1.02 for SD1000/IXUS70)

bundle 03 contains:

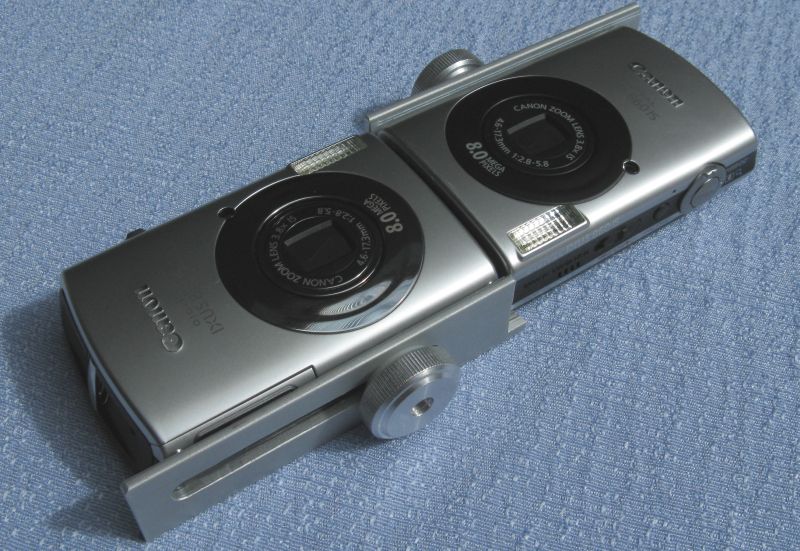

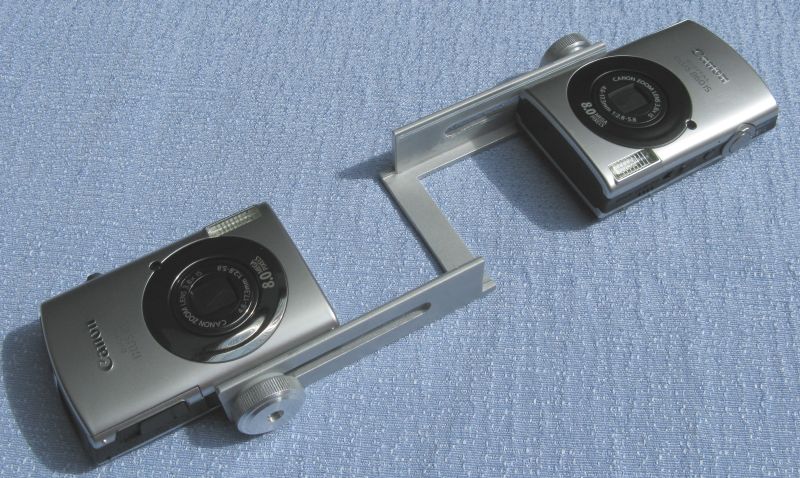

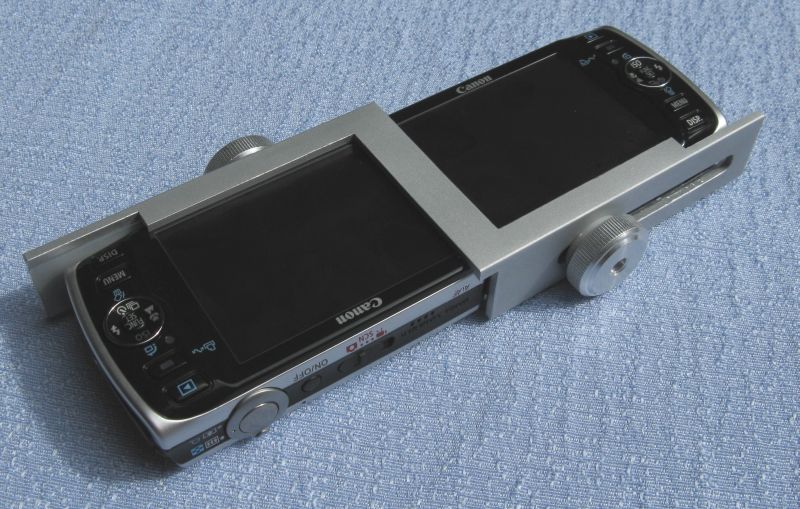

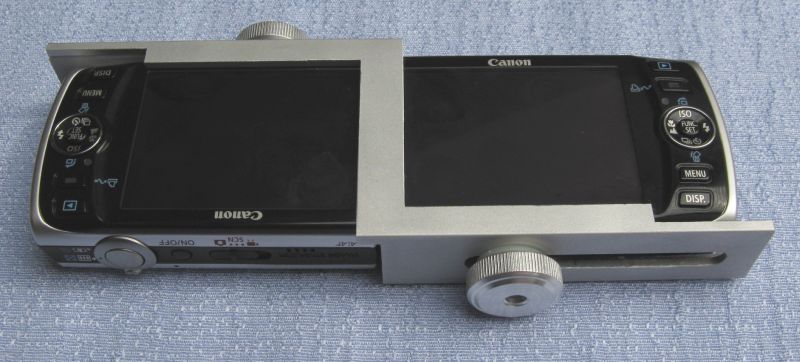

- Z-bar for Canon IXUS860/SD870/IXY910IS/100c
- 2 screws
- Canon SDM mini remote

bundle 04 contains:
- Z-bar for Canon IXUS860/SD870/IXY910IS/100c
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 07 contains:
- Z-bar for Canon IXUS75/SD750
- 2 screws
- Canon SDM mini remote

bundle 08 contains:
- Z-bar for Canon IXUS75/SD750
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 09 contains:

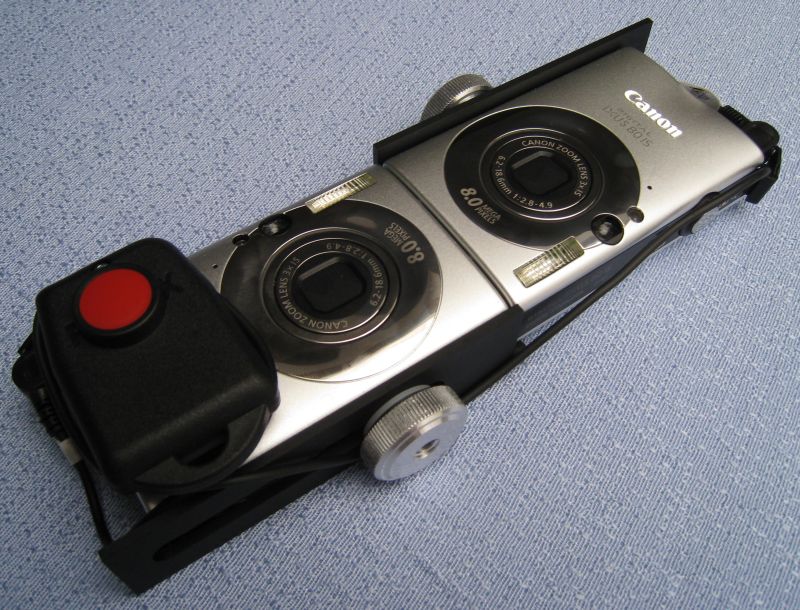

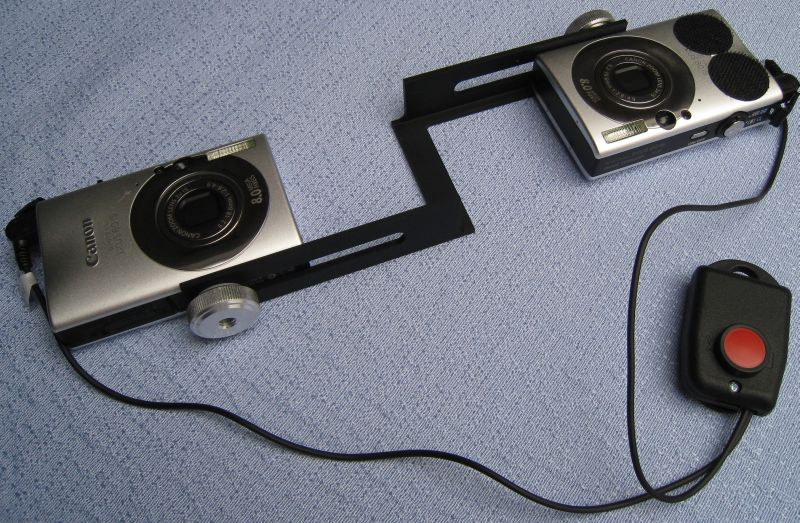

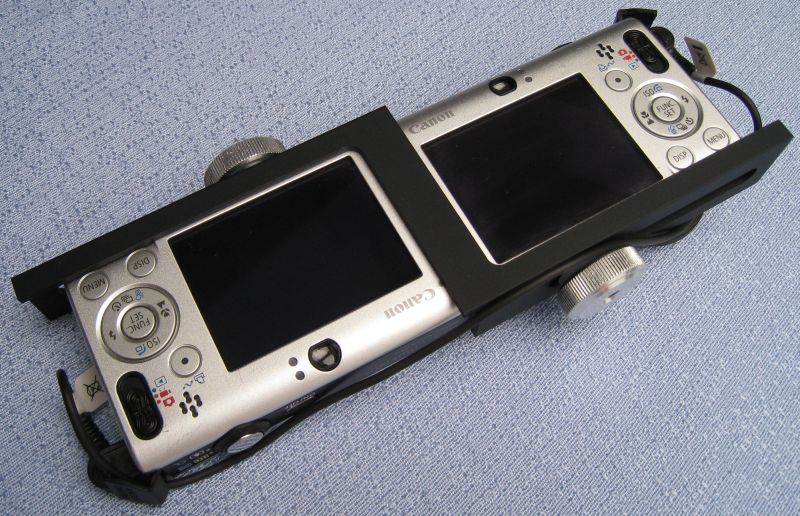

- Z-bar for Canon IXUS80/SD1100
- 2 screws
- Canon SDM mini remote

bundle 10 contains:
- Z-bar for Canon IXUS80/SD1100
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 11 contains:

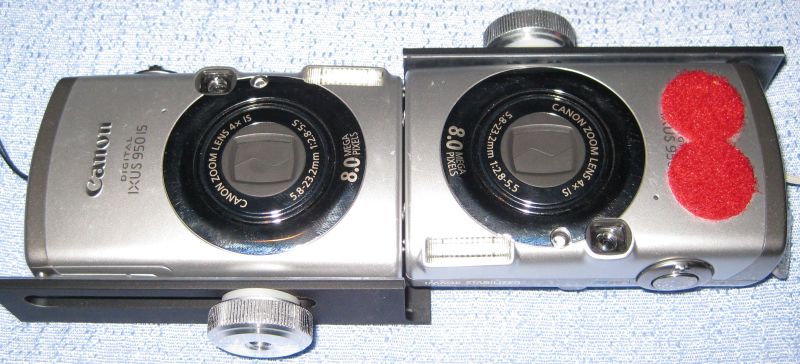

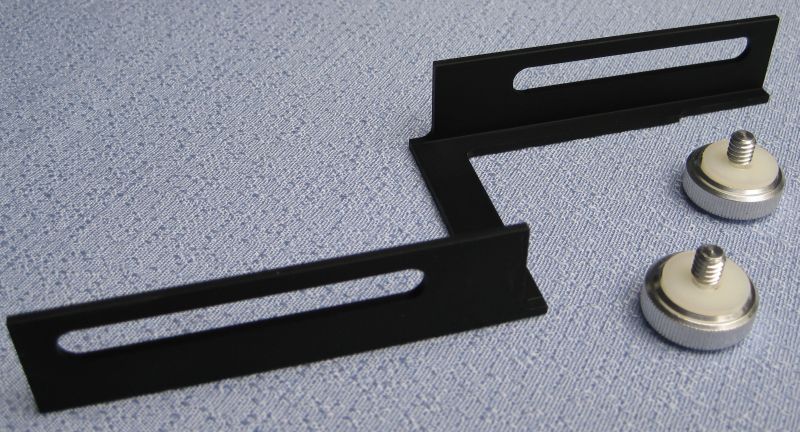

- Z-bar for Canon IXUS 950/SD850
- 2 screws
- Canon SDM mini remote

bundle 12 contains:
- Z-bar for Canon IXUS 950/SD850
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 13 contains:

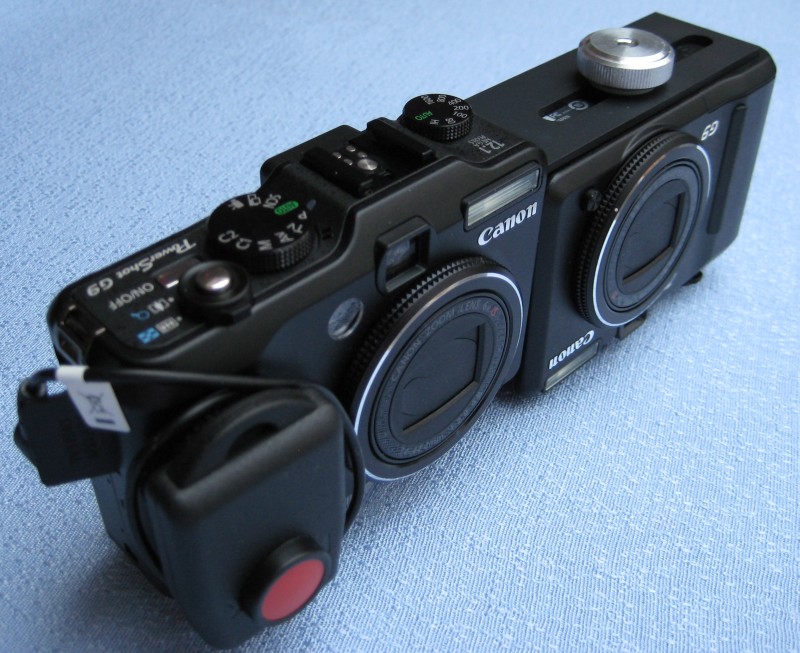

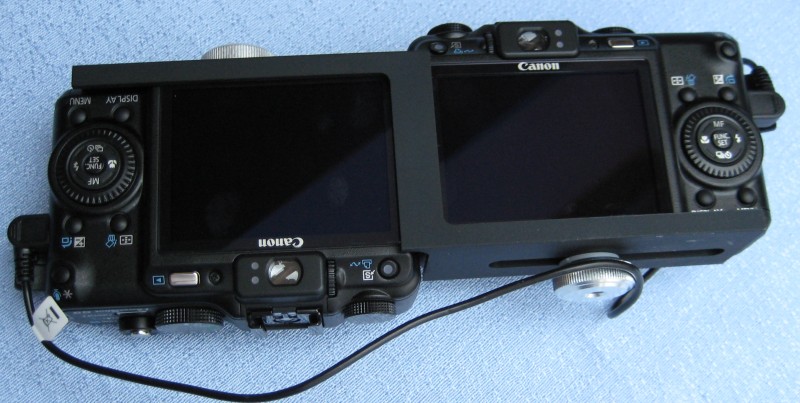

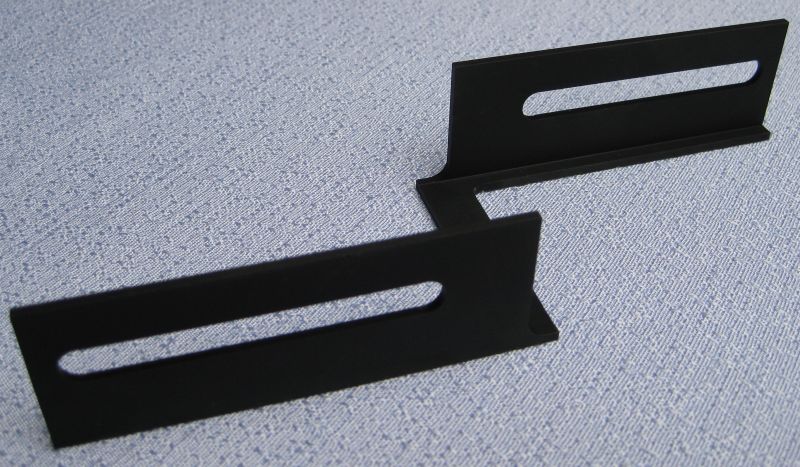

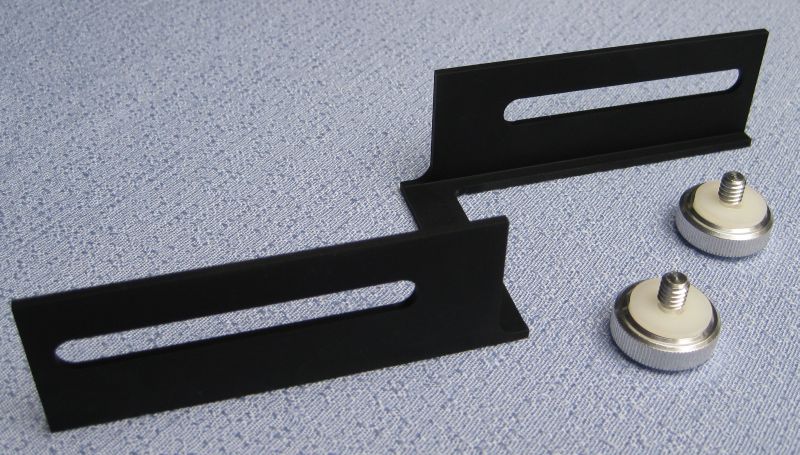

- Z-bar for Canon PowerShot G9
- 2 screws
- Canon SDM mini remote

bundle 14 contains:
- Z-bar for Canon PowerShot G9
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 15 contains:

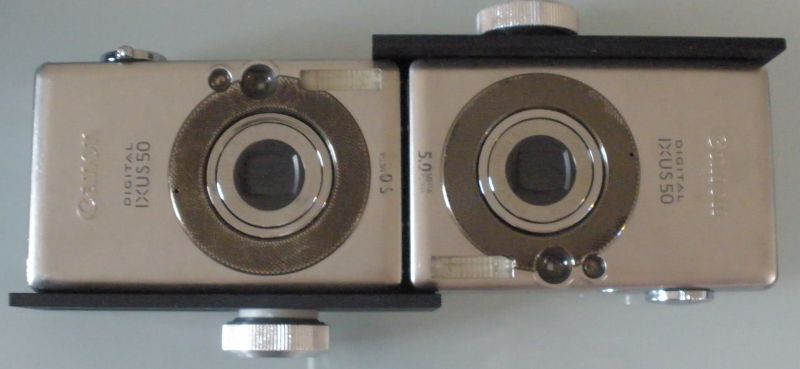

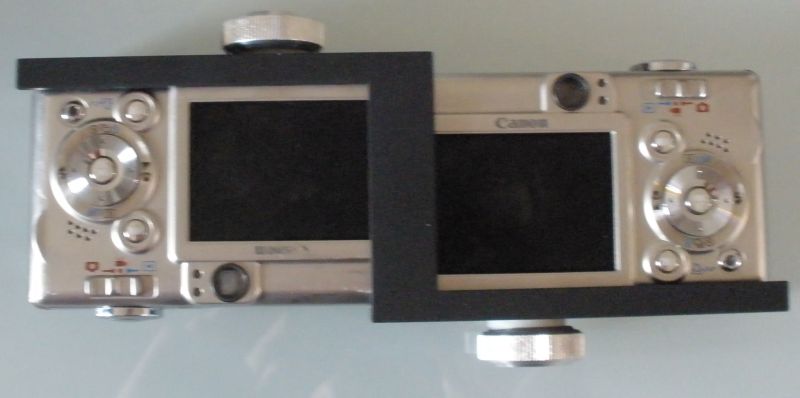

- Z-bar for Canon IXUS50 / SD 400
- 2 screws
- Canon SDM mini remote

bundle 16 contains:
- Z-bar for Canon IXUS50 / SD 400
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 17 contains:
- Z-bar for Canon IXUS870/SD880/IXY920IS
- 2 screws
- Canon SDM mini remote

bundle 18 contains:
- Z-bar for Canon IXUS870/SD880/IXY920IS
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

bundle 19 contains:
- Z-bar for Canon
IXUS870/SD880/IXY920IS
- 2 screws
- Canon SDM mini remote

bundle 20 contains:
- Z-bar for Canon IXUS870/SD880/IXY920IS
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed
ATTETION - this bundle is not available yet since SDM version for this model is not available at the moment

Z-bar for Canon PowerShot SX110

Bundle 21 contains:
- Z-bar for Canon PowerShot SX110
- 2 screws
- Canon SDM mini remote

Bundle 22 contains:
- Z-bar for Canon PowerShot SX110
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

Bundle 23 contains:
- Z-bar for Canon PowerShot SX200
- 2 screws
- Canon SDM mini remote

Bundle 24 contains:
- Z-bar for Canon PowerShot SX200
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

Bundle 25 contains:
- Z-bar for Canon IXUS 980 / SD990
- 2 screws
- Canon SDM mini remote

Bundle 26 contains:
- Z-bar for Canon IXUS 980 / SD990
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

Bundle 27 contains:
- Z-bar for Canon IXUS 100 / SD 780
- 2 screws
- Canon SDM mini remote

Bundle 28 contains:
- Z-bar for Canon IXUS 100 / SD 780
- 2 screws
- Canon SDM mini remote
- preinstalled SDM on 2* 2GB SD high speed

SDM Z-bar accessories

4 GB SD cards instead of 2GB SD cards
When ordering the bundles containing SD cards you may add this item so 4GB cards are shipped instead of 2GB cards - this item replaces the 2GB cards.

black anodized 1/4" screws - 8mm long (1/3") with 1/4" thread
(replacement for the aluminum colored screws)

4GB SD cards preinstalled with latest SDM version
(replacement for the 2GB SD cards ordered with a bundle)

* price does not include German VAT (19%) and shipping. This price is valid for all customers outside the European Union and for European customers (except Germany) with a valid VAT number.

** price does not include shipping - shipping costs may vary upon destination country, package size and shipping agency. For these items shipping is usually done as a maxi letter via standard postal service which is EUR 9.- worldwide / 5,50 EUR within Europe. For customers within European Union without VAT number there are extra 19% VAT on the shipping costs.

Canon / SDM underwater housing

Underwater housing for SDM paired Canon 3D cameras
(klick auf die Bilder für eine größere Ansicht)	Underwater housing fits for all SDM rigs - you need to use the z-bars and the SDM mini remote offered on this site. Features: - simple handling - there is only one single button for shooting (note: cameras need to be powered on and setup prior to adding them to this housing - bothe monitors of the cameras are fully viewable from the back of the housing - depth up to 40m - handle to secure the camera - tripod thread for mounting additional lights - cameras can be removed very easy so the 3D can be used on land as well without need to dismount them - stable clamp including secure spring - perfect even for snorkeling see some examples of two snorkeling sessions here: http://www.stereoforum.org/viewtopic.php?f=76&t=519 http://www.stereoforum.org/viewtopic.php?f=76&t=482 Housing is delivered without cameras or z-bar (needs to be ordered separate) delivery/manufacturing time: 4-5 weeks This underwarer housing will be manufactured only on cusomers order. When placing an order a prepaiment of 60% of the final invoice needs to be done, the rest before delivery. Canceling such an order (before delivery) will result in paiment of 25% ! Since these housings are manufactured on customer request no return and no money back guarantee is possible!
order number	description	price (EUR)*	price including 19% VAT**
SDM UW	Canon SDM UW	755,46	898,99
* price does not include German VAT (19%) and shipping. This price is valid for all customers outside the European Union and for European customers (except Germany) with a valid VAT number. ** price does not include shipping - shipping costs may vary upon destination country, package size and shipping agency. For these items shipping is usually done as a maxi letter via standard postal service which is EUR 9.- worldwide / 5,50 EUR within Europe. For customers within European Union without VAT number there are extra 19% VAT on the shipping costs.

3D Cameraset - ready to go stereoscopic camera

(click on the images to show a larger view)

3D Camera set consisting of:

- 2* Canon IXUS80 / IXUS860 / Powershot G9
- Z-bar for IXUS80 / IXUS860 / Powershot G9
- 2 screws
- SDM mini remote
- 2* 2GB high speed SD cards (133x) ready configured and installed
- 2 Velcro pads for mounting the remote
- installed with the most recent SDM version

Synchronous shutter release using SDM up to less than 1/5000s (in 98%)
Stereobase: min 60mm - max 155mm. SD card and battery slot accessable without need to remove the cameras. Two Velcro pads for mounting the remote (see pictures for best placing) - you are able to remove the remote and use it in your hand.
Cameras available in: silver/silver, silver/black, black/black

Camera features (applies to each camera):

- resolution dependent on camera model
- optical 3x zoom
- videocapturing at 640*480/30 (not synchronized yet)
- zoom from 35mm to 105mm (equiv. 35mm analog camera) (dependent on camera model)
- 2,5" PureColor LCD-screen (dependent on camera model)
- ISO 1600 and Auto ISO Shift

This camera uses SDM firmware for all stereoscopic features - SDM is freeware - there are NO charges for SDM! There is no direct SDM support and no manual for SDM included - for detailed SDM features please read the instruction on SDM homepage.

* price does not include German VAT (19%) and shipping. This price is valid for all customers outside the European Union and for European customers (except Germany) with a valid VAT number.

** price does not include shipping - shipping costs may vary upon destination country, package size and shipping agency. Shipping outside Germany will be done exclusively via UPS or Fedex. For customers within European Union without VAT number there are extra 19% VAT on the shipping costs.
